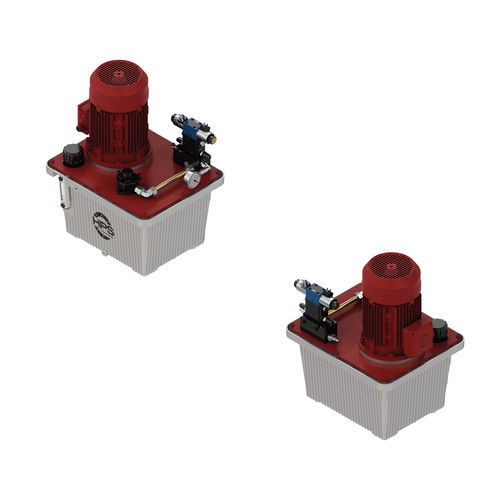

Electric motor hydraulic power unit KA series

compactmodular

At HPS HYDROPNEU we have used our years of experience to develop power unit series that can cover a wide range of applications. Our standardized compact unit series KA, available in five sizes, already covers many common applications and can be adapted quickly and cost-effectively to your requirements due to its modular design and numerous additional options. BASIC FEATURES: • Compact design for easy integration into your system • For valve assembly of construction size NG6 (other sizes available a request) • Oil tank made of aluminum with high radiating capacity (steel possible on request) • Medium: hydraulic mineral oil HLP according to DIN 51524 part 2 (others possible on request) • Ambient temperature range -20 °C to +40 °C • Degree of protection IP55 (others possible on request) • Adjustable pressure relief valve as security element • Pressure gauge for displaying the set pressure • Sight glass for checking the fill level • Return flow filter with optical contamination indicator • Piping and electrical wiring up to the power unit limit SELECTABLE EQUIPMENT: • Number of valve positions and thus adaptation to the number of userstobe operated • Flexible valve assembly and thus realization of the desired function - Speed reduction of individual axes - Pressure reduction of individual axes - Load holding function • Level monitaring via electric signal transmitters • Tamperature monitaring via electric signal transmitters • Active cooling when used in a warm environment or operating in a different mode • Tank heaters when used in cold environments (only possible in conjunction with steel tanks) • Different Interfaces to the operator possible
