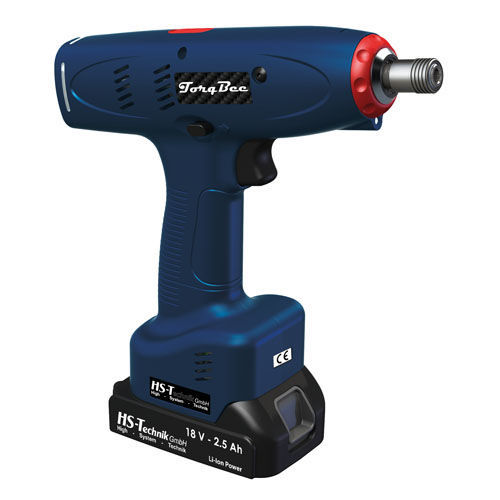

cordless electric screwdriver / pistol / brushless / battery-powered
TBPL-4 - TBPL-12

{{requestButtons}}

Characteristics

  • Type:

    cordless

  • Design:

    pistol

  • Other characteristics:

    brushless, battery-powered, lightweight

  • Voltage:

    18 V

  • Rotational speed:

    Min.: 550 rpm (3,455.8 rad.min-1)

    Max.: 1,400 rpm (8,796.5 rad.min-1)

  • Torque:

    Min.: 1 Nm (0.74 ft.lb)

    Max.: 13 Nm (9.59 ft.lb)

Description

Programmable battery screwdriver with shut-off clutch

Precision shut-off clutch
Torque repetition accuracy +/- 10%
Cmk > 1,67 | Cm > 2
Programmable in 6 steps
- Current (Torque)
- Angle
- rpm
- Time
Handle vibration alarm
Multi color LED indication
Intelligent battery management
Brushless high-powered motor
Display of the fastening results via status LED
Energy recovery of the braking energy extending the battery lifetime
Maximum of ergonomic
LED lighting of the working area
Updates can be done through the USB

Premium Power Tools

This claim is more than fulfilled by the easy-to-use, high-performance cordless screwdriver. With a USB interface integrated into the foot of the tool, the TorqBee® pistol screwdriver (1.0 - 13 Nm) and angle screwdriver (1.5 - 75 Nm) can be programmed freely in 1 program and 6 steps.

Quality assurance

Thanks to a multi-stage tightening, required preload force and the desired clamping force in the connection are always achieved. In most cases, the multi-stage process allows compensation or elimination of subsidence.

The screwdriver can be programmed with reference values for the process. If the specified current / angle / rpm / time reference value is not adhered to, the fastening procedure is evaluated as NOK, and this is indicated visually by the multi color LED (red and audible signal = NOK, green = OK) (direct information to the operator).
