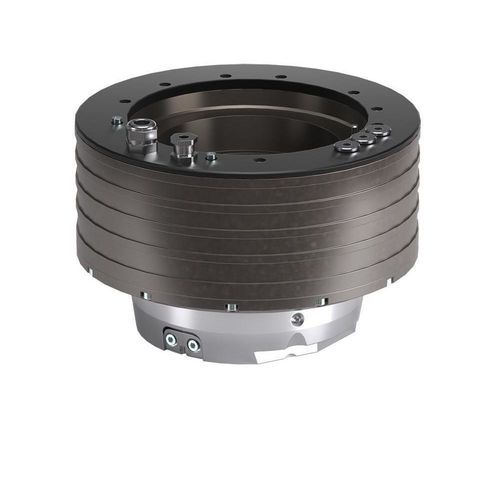

Electric rotary module MK259

Overview
The MK259 C-axis, designed and manufactured by HSD, is a direct-drive rotary axis intended for integration into machine tools and machining units. It is suitable for machining a variety of materials and metals and is presented here for applications on wood and composite materials. The unit includes an HSD-branded servo motor and supports fluidic connections for peripheral devices.

Materials

• Wood
• Composite

Technical sheet
Direct Drive: Yes
Servo/motor: brand: HSD
Servo/motor: supplied: Yes
Reduction ratio: 1
Fluidic outlets: n° 0÷3
Rated output speed [rpm]: 60
Max Output Speed [rpm]: 100
Max output acceleration [round/sec²]: 10
Weight [kg]: 1

Features / technical specifications

• Direct-drive transmission for fast dynamic response
• Integrated HSD servo motor (supplied)
• Reduction ratio 1
• Configurable fluidic outlets: 0–3
• Rated output speed: 60 rpm; max 100 rpm
• Max output acceleration: 10 round/sec²
• Compact unit weight: 1 kg
