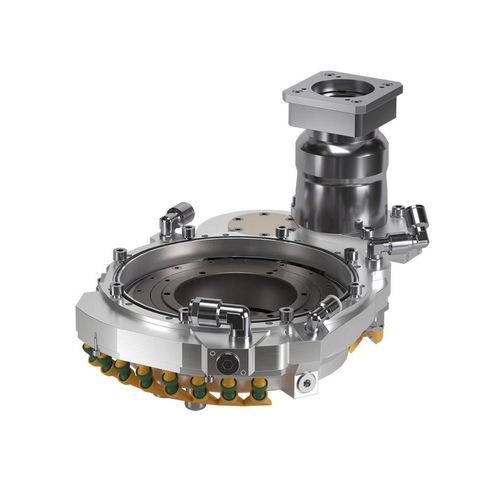

Motor-driven rotary table MK353

horizontalfor machine toolsfor machining centers

Overview
The MK353 C-axis, designed and manufactured by HSD, is a rotary C-axis solution for industrial machining operations. It is intended for integration into CNC machines and systems for machining materials such as glass and stone.

Applicable materials

• Glass
• Stone

Technical data (summary)
Direct Drive: No
Servo/motor brand: -*
Servo/motor supplied: No
Reduction ratio: 100 / 200
Fluidic outlets: 15
Rated output speed [rpm]: 17
Max output speed [rpm]: 30
Max output acceleration [round/sec²]: 1**
Weight [kg]: 15

Technical specifications

• Product type: MK353 C-axis (C-axis solution for industrial machining)
• Direct Drive: No
• Servo/motor brand: -*
• Servo/motor supplied: No
• Reduction ratio: 100 / 200
• Number of fluidic outlets: 15
• Rated output speed: 17 rpm
• Maximum output speed: 30 rpm
• Maximum output acceleration: 1 (round/sec²)
• Weight: 15 kg
