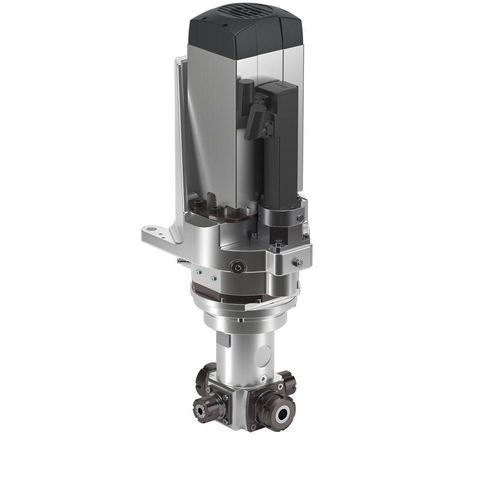

CNC machining unit MF

variable-anglecontinuousadjustable

Product overview
MF multifunction units manufactured by HSD are compact machining aggregates designed to perform drilling, milling and cutting operations on a wide range of materials. Available in several variants to match production requirements and integration constraints.

Applications / Materials

• Wood
• Composite
• Metals and mixed materials

Technical sheet (table)
Parameter | Variant 1 | Variant 2 | Variant 3
Aggregate type | Drilling / Milling / Cutting | Drilling / Milling / Cutting | Drilling / Milling / Cutting
Axis rotation | Endless | 0° (fixed) | 0–90° / 0–180°
Axis: motor model | Siemens / HSD | - | -
Axis: pneumatic rotation | No | No | Yes
Weight [kg] | 25 | 25 | 25

Technical features / specifications

• Functions: drilling, milling and cutting in a single compact unit
• Axis rotation options: continuous (Endless), fixed 0° or adjustable ranges 0–90° / 0–180° depending on variant
• Motor options: Siemens or HSD where specified
• Pneumatic rotation: available on selected variants
• Unit weight: 25 kg (per variant as listed)
• Designed for integration into industrial machining cells and CNC systems
