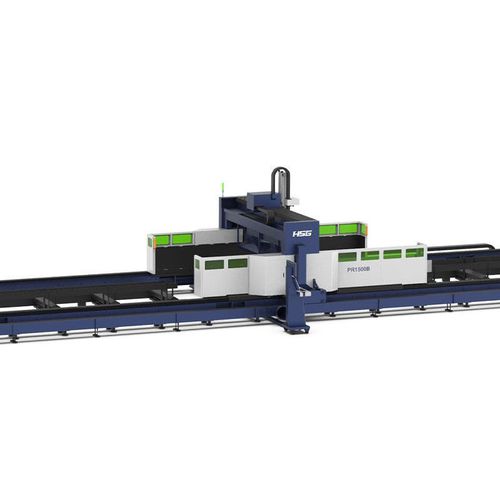

Fiber laser cutting machine PR1500Bfor metalfor thick sheet metalfor metal sheets
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- for thick sheet metal, for metal sheets
- Control type
- CNC
- Applications
- for industrial applications, for the automotive industry, for the electronics industry
- Configuration
- large-format, double table
- Other characteristics
- high-efficiency, high-power, heavy-duty
- Cutting speed
1.333 m/s
(4.373 ft/s)- Laser power
Max.: 30,000 W
Min.: 12,000 W
- Overall length
14,000 mm, 28,000 mm
(551 in, 1,102 in)- Maximum width
100 mm, 2,500 mm
(4 in, 98 in)
Description
Overview
PR1500B is a fiber laser cutting machine specifically engineered for the steel structure industry. Power range: 12000W–30000W. It supports straight cutting of sheet and section steels and bevel cutting, designed for high-load, high-efficiency industrial cutting.
Three-in-one cutting mode
Extra-large format design
Independent modular architecture offering single-station (14 m) and double-station (28 m) configurations. Extra-wide bed enables bevel cutting of sheet metal up to 2.5 m wide.
High-efficiency cutting
New-generation lightweight beam with maximum linkage speed up to 80 m/min for higher throughput compared with conventional designs.
Multiple safety protections
Protective sheet metal on both sides of the beam to block sparks; anti-burning plates for thermal protection; safety observation glass on both sides for real-time monitoring and protection during cutting.
One-stop specialized solution for section steel cutting
Real-time measurement and compensation of section steel parts and drawings using coarse and fine positioning. Nesting software with strong compatibility with Tekla. Intelligent control system for simplified operation.
Notes
Technical specifications
PR1500B is a fiber laser cutting machine specifically engineered for the steel structure industry. Power range: 12000W–30000W. It supports straight cutting of sheet and section steels and bevel cutting, designed for high-load, high-efficiency industrial cutting.
Three-in-one cutting mode
- Sheet metal straight cutting
- Section steel straight cutting
- Bevel cutting
Extra-large format design
Independent modular architecture offering single-station (14 m) and double-station (28 m) configurations. Extra-wide bed enables bevel cutting of sheet metal up to 2.5 m wide.
High-efficiency cutting
New-generation lightweight beam with maximum linkage speed up to 80 m/min for higher throughput compared with conventional designs.
Multiple safety protections
Protective sheet metal on both sides of the beam to block sparks; anti-burning plates for thermal protection; safety observation glass on both sides for real-time monitoring and protection during cutting.
One-stop specialized solution for section steel cutting
Real-time measurement and compensation of section steel parts and drawings using coarse and fine positioning. Nesting software with strong compatibility with Tekla. Intelligent control system for simplified operation.
Notes
- The workbench is optional.
Technical specifications
- Model: PR1500B
- Power: 12000W–30000W
- X/Y-axis positioning accuracy: ±0.1 mm/m
- Workbench: optional
