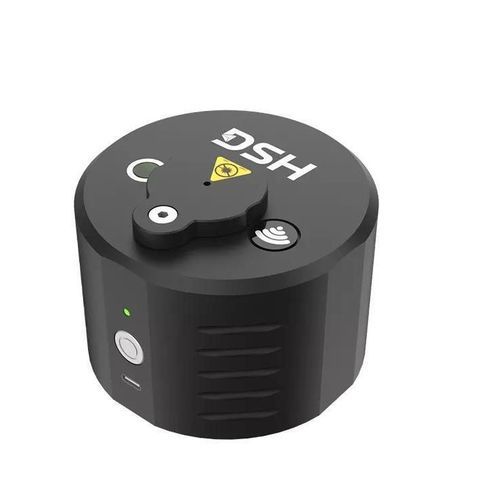

Laser beam aligner NVA

Overview
The NVA is a nozzle visual aligner designed for precise calibration of laser cutting nozzles. It provides smartphone-guided, real-time visualization and measurement to simplify adjustment and ensure accurate first-time alignment.

Key Benefits

• One-time successful alignment through visual guidance
• Reduced production setup time
• Improved cutting yield and process reliability
• Lower material waste and associated costs

How it works
The NVA uses a smartphone screen to display the alignment process in real time. HSG's proprietary high-precision circle fitting algorithm computes the nozzle center and guides adjustments, reducing dependence on operator experience and enabling rapid calibration for new users.

Usage / Application

• Visual calibration of laser nozzles
• Calibration aid for laser cutting machines to enhance cutting accuracy and yield
• Suitable for both experienced operators and beginners

Media
Product pages include images and a demonstration video showing the NVA in operation and the calibration workflow.

Specifications

• Denomination (model): NVA
• Function: Nozzle visual aligner for laser calibration
• Calibration method: Visual real-time guidance via smartphone
• Algorithm: HSG high-precision circle fitting algorithm
• Main advantages: One-time alignment, reduced setup time, improved yield, reduced material waste
• Target users: Laser cutting operators and beginners
• Manufacturer: HSG Laser
