Laser system loading and unloading system Store Pro series

for palletautomaticmodular

Product overview

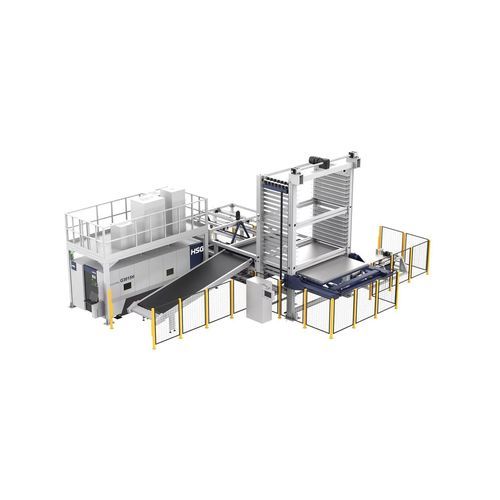

The Store Pro is an intelligent automatic laser loading and unloading system designed to optimize material handling for laser cutting machines. It provides a modular, cost-effective solution to increase machine utilization and hourly output while addressing common production constraints.

Your challenge – our concern

• Limited availability of skilled labour, especially for second and third shifts
• Restricted plant height
• Low machine utilization and daily output
• Complex handling of raw materials and finished parts
• Constrained budgets

Flexible for different production strategies

• Flow 1: finished parts returned to the tower — useful for 2nd/3rd shifts with sorting during day shift
• Flow 2: sorting per pallet
• Flow 3: sorting per sheet (optional)

Optimized machine utilization — boost your output
Automation reduces waiting times for logistics staff. Synchronous loading and unloading shorten handling cycles so the machine can run continuously, maximizing hourly throughput and reducing the need for extra machines, floor space and operators.

70%+ improved space
Compact tower layout supports up to 10 positions per tower with a typical height of 4.4 m, enabling substantial space savings in the production area.

Save cost at every step
Modular design allows phased extension of the system to match business growth and spread investment across stages.

Specifications / technical data

• Models available: Store Pro 3015 and Store Pro 4020.
• Store Pro 3015:
  Max/Min loading sheet size: 3048×1524 mm (10' x 5') / 1000×1000 mm (3.28' x 3.28')
  Max sheet weight: 600 kg (1322 lbs)
  Tower height (standard): 5100 mm (16.73') — modular extension optional
  Max stacking height per pallet: 90 mm (3.54'') / 310 mm (12.2'')
  Max loading weight per pallet: 3000 kg (6613 lbs)
• Store Pro 4020:
  Max/Min loading sheet size: 4064×2032 mm (13.3' x 6.6') / 1000×1000 mm (3.28' x 3.28')
  Max sheet weight: 1200 kg (2645 lbs)
  Tower height (standard): 5100 mm (16.73') — modular extension optional
  Max stacking height per pallet: 90 mm (3.54'') / 290 mm (11.4'')
  Max loading weight per pallet: 5000 kg (11023 lbs)
