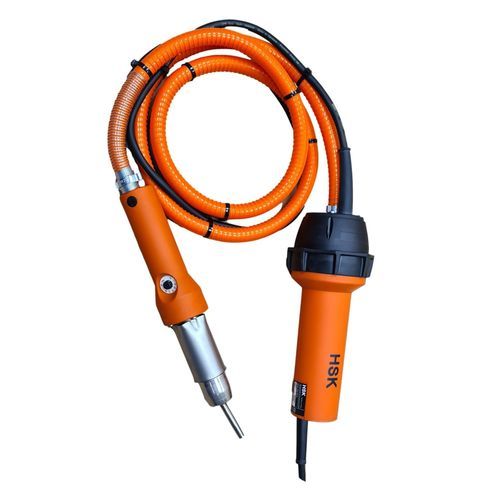

Compact hot air hand tool HSK-APX400

Short description
Compact, lightweight hot-air welding gun for thermoplastic welding according to DVS 2207-3.

Description
The electrically insulated HSK-APX400 is designed for plastic fabricators and tank manufacturers who need a portable, easy-to-handle welding tool. Heating power is 1500 W (230 V) or 1300 W (120 V); temperature is continuously adjustable from 20–700 °C and is held constant by electronic control. Air volume can be adjusted using a separate rotary knob. The tool is supplied by a portable handheld blower that provides the required air on site. An optional M10 threaded adapter allows the use of screw-on quick-welding nozzles commonly used in plastic and tank construction. A wide range of accessories is available to weld plastic sheets, pipes, components and tanks.

Characteristics / Specifications

• Voltage: 230 V 50/60 Hz or 120 V 50/60 Hz
• Power: 1500 W (230 V) or 1300 W (120 V)
• Temperature range: 20–700 °C, continuously adjustable
• Control: Electronic (temperature held constant)
• Air supply: External portable blower possible
• Nozzle: Optional M10 threaded adapter (permits screw-on quick-welding nozzles)
• Applicable standard: For plastic welding according to DVS 2207-3
