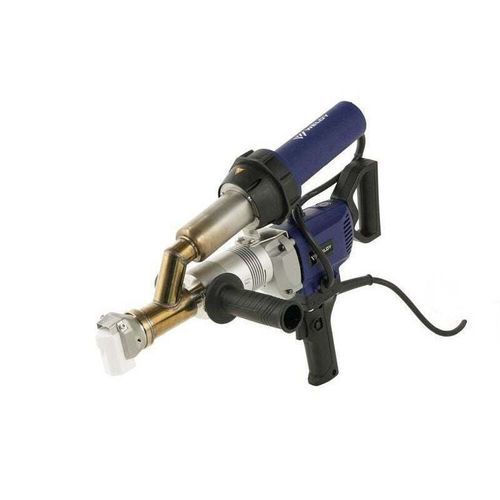

Plastics welding hand extruder booster EX2

Overview
booster EX2 is a hand-held extruder designed for plastic fabrication and construction applications. Supplied with EU plug. Rated 230 V / 3000 W.

Main features

• Nominal extrusion rate: max. 2.2 kg/h
• Compact, hand-held design for on-site welding and repair
• Ergonomic rotating handle for improved handling
• Lockable trigger for continuous extrusion with reduced operator effort
• Quick-change welding shoes to increase uptime
• Accepts welding wire Ø 3 mm and Ø 4 mm for flexible welding positions
• Durable construction, inspected for function and safety

Technical data (table)

• Voltage: 230 V ~
• Power: 3,000 W
• Frequency: 50 Hz / 60 Hz
• Welding wire: Ø 3 mm / Ø 4 mm
• Output: 2.5 kg
• Preheat temperature: ~360 °C
• Extrudate temperature: ~310 °C
• Dimensions: 500 x 140 x 380 mm
• Weight: 6.4 kg
• Material compatibility: PE, PP

Specifications

• Voltage: 230 V ~
• Power: 3,000 W
• Frequency: 50 Hz / 60 Hz
• Welding wire: Ø 3 mm / Ø 4 mm
• Nominal extrusion: max. 2.2 kg/h
• Measured output: 2.5 kg
• Preheat temperature: ~360 °C
• Extrudate temperature: ~310 °C
• Dimensions (L x W x H): 500 x 140 x 380 mm
• Weight: 6.4 kg
• Suitable materials: PE, PP
• Application: hand extruder for plastic fabrication and construction
