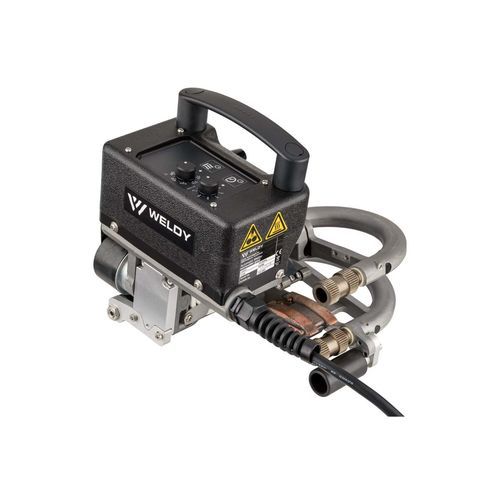

Single-phase welder miniwelder geo2

ACfor thermoplasticselectronic

Product description

• The lightweight welding unit miniwelder geo2 is designed for thin geomembranes. It is typically used for welding fish farming ponds, water tanks, horticulture installations and foundation waterproofing.
• The compact and fast miniwelding unit geo2 from Weldy is suitable for welding geosynthetic liner sheets with thicknesses from 0.5 to 1.5 mm (HD-PE 0.4–1.0 mm; TPO 0.7–1.5 mm). It features an advanced drive system and intuitive controls: temperature and speed are toggled with two buttons and adjusted with two rotary knobs. Process status is indicated by two LEDs.

Technical table
Voltage: 230 V ~
Frequency: 50Hz / 60Hz
Power: 800 W
Temperature: 60 - 480°C
Heater wedge material: Copper / Steel
Welding width: 2x 12 mm with test channel
Maximum overlap: 100 mm
Speed: 0.4 - 7.5 m/min
Size (L x W x H): 228 x 228 x 170 mm
Weight: 3.9 kg
Weldable materials: LDPE, PVC* (0.5 - 1.5 mm)
TPO/FPO (0.7 - 1.5 mm)
HDPE (0.4 - 1.0 mm)
* PVC only with steel wedge

Characteristics / Technical specifications

• Voltage: 230 V ~
• Frequency: 50Hz / 60Hz
• Power: 800 W
• Temperature range: 60 - 480°C
• Heater wedge material: Copper / Steel
• Welding width: 2x 12 mm with test channel
• Maximum overlap: 100 mm
• Speed: 0.4 - 7.5 m/min
• Dimensions (L x W x H): 228 x 228 x 170 mm
• Weight: 3.9 kg
• Processable materials: LDPE, PVC* (0.5 - 1.5 mm), TPO/FPO (0.7 - 1.5 mm), HDPE (0.4 - 1.0 mm) - PVC only with steel wedge
