- HSK Kunststoff Schweißtechnik GmbH

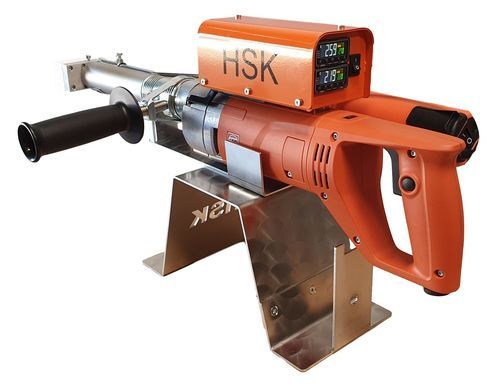

Rod welder HSK35 RSXsingle-phasefor thermoplasticswith integrated display
Add to favorites
Compare this product
Characteristics
- Consumables
- rod
- Power supply
- single-phase
- Material
- for thermoplastics
- Other characteristics
- with integrated display, portable, with wire feeder
- Intensity
Max.: 30,000 A
Min.: 0 A
- Weld thickness
Max.: 50 mm
(2 in)Min.: 15 mm
(0.6 in)- Wire/electrode diameter
Max.: 5 mm
(0.2 in)Min.: 4 mm
(0.16 in)
Description
Short description
Extrusion welder for plastics – welding according to DVS 2207/4
Product description
Note
*PVDF with separate screw
Technical characteristics / specifications
Extrusion welder for plastics – welding according to DVS 2207/4
Product description
- Base unit:
- Welding capacity (PE): 3.0 kg/h
- For extrusion welding of HDPE, PP, PVC and PVDF*.
- Mass temperature control by measuring directly in the melt.
- Wire feed, no additional feed aids required.
- Actual and setpoint display of melt and air temperature.
- Cold-start protection.
- Ø 4/5 mm PE/PP welding rod usable.
- Includes 1 x welding shoe blank.
Note
*PVDF with separate screw
Technical characteristics / specifications
- Article number (SKU): 400180
- Welding rod: Ø 4/5 mm PE/PP
- Dimensions (L x W x H): 660 x 190 x 220 mm
- Throughput / welding capacity: 3.0 kg/h (value refers to PE)
- Extruder heating power: 700 W
- Drive power: 1200 W
- Plate thickness: 15 – 50 mm
- Weight: 8.3 kg
- Air supply: integrated air supply 2200 W
- Voltage: 230 V / 50 Hz
