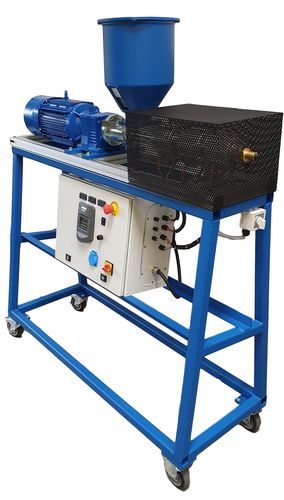

Single screw extruder HSK-SE
weldingfor PVCfor HDPE

Single screw extruder - HSK-SE - HSK Kunststoff Schweißtechnik GmbH - welding / for PVC / for HDPE

Add to favorites

Compare this product

Go to the HSK Kunststoff Schweißtechnik GmbH website for more information

Characteristics

Number of screws

single screw

Applications

welding

Treated material

for PP, for PVC, for HDPE, for PVDF

Output

Min.: 0 kg/h
(0 lb/h)

Max.: 20 kg/h
(44.0925 lb/h)

Weight

100 kg
(220 lb)

Power

2 kW
(2.72 hp)

Description

Description

For continuous and discontinuous extrusion welding of PEHD, PP, PVC and PVDF
Stepless control of welding speed
Digital display of all welding parameters; PC evaluation optional
Extrudate output up to 20 kg/h depending on machine type
Mobile machine table for site flexibility
Safety features: start interlocks at low temperature and pressure monitoring
Prepared for connection of an extrudate hose (max. 3 m)

Additional information
Drive power: 2000 W
Control: stepless via frequency inverter
Heating power: 2.1 kW, 3 heating zones
Voltage: 400 V/50 Hz
Weight: approx. 100 kg (incl. chassis)

Characteristics / Technical specifications

Application: extrusion welding (continuous and discontinuous) of PEHD, PP, PVC, PVDF
Welding speed control: stepless
Display: digital display of all welding parameters; optional PC evaluation
Output: up to 20 kg/h (depends on machine type)
Mobility: mobile machine table
Safety: start interlocks at low temperature, pressure monitoring
Extrudate connection: prepared for hose connection (max. 3 m)
Drive power: 2000 W
Heating power: 2.1 kW, 3 heating zones
Voltage: 400 V / 50 Hz
Weight: approx. 100 kg (incl. chassis)
