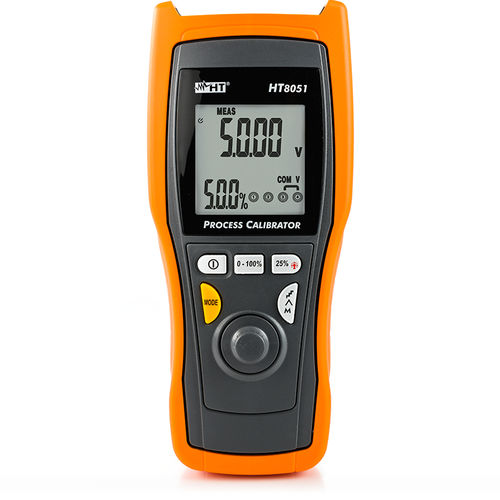

Multifunction calibrator HT8051
for mA signalsdigitallaboratory

multifunction calibrator
multifunction calibrator
Add to favorites
Compare this product


Characteristics

Measured physical value
multifunction, for mA signals
Options
digital, laboratory, process, industrial
Voltage

Min.: 0 V

Max.: 10 V

Description

Multifunction 4-20mA/0-10V Process Calibrator HT8051 is a professional digital process calibrator capable of generating and measuring signals of DC voltage and current up to 10V and 24mA respectively with a very simple setting of values thanks to the innovative adjuster. In measuring and generating current, it is also possible to define a display, also in percentage format, corresponding to the set values (0% = 4mA, 100% = 20mA). The generation of voltage and current signals is also possible by using up to 3 selectable ramps. This model also allows measuring the current absorbed by external transducers directly supplied by it and simulating the presence of a transducer with adjustable current in its whole measuring range. HT8051 has been designed in compliance with safety standard IEC/EN61010-1 with double protective insulation, and each function can be selected through the appropriate buttons found on the front panel. This device is the ideal solution for typical industrial automation applications and for laboratory activities. Functions •Measuring counts - •TRMS - •AC/DC voltage - MAX 10VDC •AC/DC current - MAX 24mADC •DC 4-20mA current measurement - •DC 0-10V voltage measurement - •DC 4-20mA current generation - •DC 0-10V voltage generation - •Measurement of output current of transducers - •Simulation of an external transducer - •Loop supply with minimum voltage 24V - •Generation of selectable ramp - •Backlit LCD display - •Auto power off - •Protection category - •Weight in grams (batteries included) - •Size (LxWxH) (mm) - Guidelines •CE MARK •EMC 2014/30/EU •EMC: IEC/EN61326 •IEC/EN61010-1 •LVD 2014/35/EU
