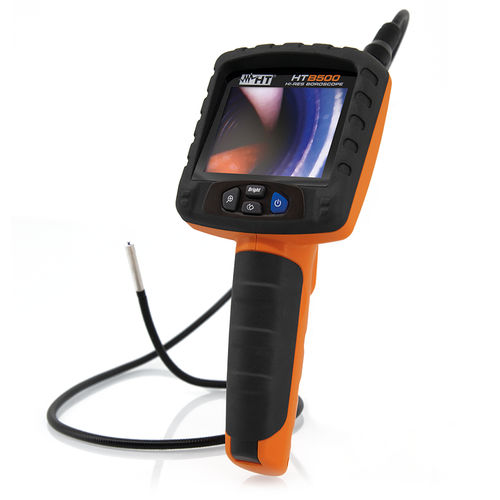

Model HTB500 is a portable digital borescope which allows carrying out inspections inside parts of objects not physically accessible (typically rotating equipment) and not visible to the naked eye. The instrument uses a waterproof external feeler with 4 LEDs with high brightness and a photo camera, in order to obtain a high-resolution image on the display.
Functions
Sensor size - ¼in (CMOS), 300.000pxl
Max sensor resolution - 640x480pxl
Max sampling frequency - 30FPS/S
Color depth - 24bit
Image focus - fixed (5cm ÷ 15cm) (2.0in ÷ 5.9in)
Zoom image - 1.0x ÷ 2.0x
External probe length - 1m (39in)
Probe diameter - 6mm (0.2in)
Iluminación de la cámara - 4 LED white light
Brightness adjustment - 10 levels
Rechargeable battery - Li-ION, 2000mAh
Low battery indication -
Battery operation time - 5 hours
Size (LxWx H) (mm) - 250 x 100 x 95mm
Weight in grams (batteries included) - 345g
Colour LCD display - 640x320pxl
Mechanical protection - IP54 (instrument), IP67 (external probe)
PAL/NTSC video output
