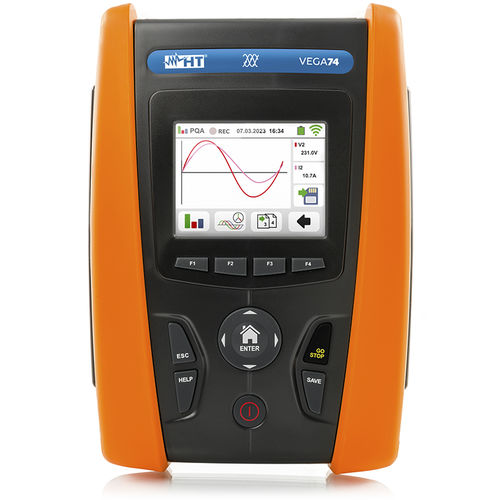

Power quality analyzer VEGA74

signal3-phase electrical networksharmonic

VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600 electrical parameters simultaneously. The use of VEGA74 is very simple and intuitive, thanks to the interface with color touchscreen display with icon structure. VEGA74 is ideal for solving problems deriving from low network quality, voltage anomalies, harmonics and high energy consumption which can then become much more harmful and complex phenomena to keep under control if neglected for too long. The measurements taken can be transferred to a PC with USB or WiFi connection with a dedicated software in order to analyze the data and create printed reports. › 9 types of electrical systems available › DC/AC TRMS voltage for single-phase/three-phase systems up to 600V › Current DC/AC TRMS single-phase/three-phase systems up to 3000A › Active, Reactive and Apparent Power/Energy › Cosphi and Power Factor › Voltage, Current, DC Power › Neutral current measurement › Voltage dips and peaks on 20ms @50hz › Voltage dissymmetry (NEG%, ZERO%) › Voltage/current waveforms › Voltage/current harmonic histograms and THD% › Voltage/current vector diagram › Periodic recording with selectable PI between 2s and 30min › Maximum number of quantities that can be selected simultaneously 600 › Voltage/current harmonic analysis up to the 49th › Calculation and recording THD% voltages/currents › Recording autonomy indication › Recording of leakage currents Functions 9 types of electrical systems - 1Φ-2 wires, 1Φ-center tap, 3Φ-3 wires, 3Φ-Aron, 3Φ-Δ Open, 3Φ-Y Open, 3Φ-2 el. 1/2, 3Φ-4 Y-wire, 3Φ-High Leg. Integration with programmable period - 2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min, 15min, 30min
