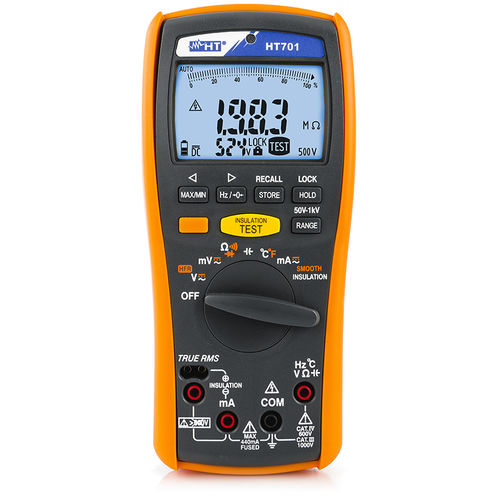

Digital multimeter HT701portable1000 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with insulation tester
- Applications
- industrial
- Other characteristics
- AC/DC, true RMS
- Max DC voltage
1,000 V
- Max AC voltage
1,000 V
- Max DC current
10 A
- Max AC current
10 A
Description
Professional TRMS multimeter with 10.000 measuring spots and measurement of insulation resistance with selectable test voltage between 50, 100, 250, 500, 1000VDC.
HT701 is capable of saving the results of measurements in its internal memory and has been designed in compliance with safety standard IEC/ EN61010-1 in CAT III 1000V and CAT IV 600V with double protective insulation.
Functions
TRMS -
Frequency -
Resistance -
Continuity with buzzer -
Capacity -
Diode test -
Temperature with K-type probe -
Guidelines
CE MARK
EMC 2014/30/EU
EMC: IEC/EN61326
IEC/EN61010-1
IEC/EN61557-2
LVD 2014/35/EU
UNE20460
