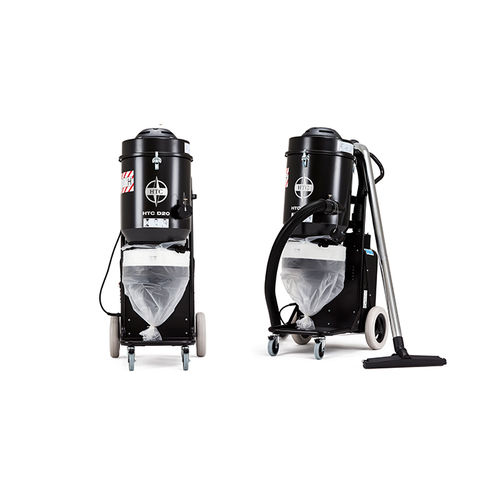

Industrial dust extractor HTC D20
dryelectricwheel-mounted

industrial dust extractor
industrial dust extractor
industrial dust extractor
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
dry
Power source
electric
Configuration
wheel-mounted
Applications
for grinding/sanding/polishing machines
Other characteristics
with HEPA filter, cyclone
Power

2,400 W
(8,189.14 BTU/h)

Air flow

438 m³/h
(15,467.8 ft³/h)

Weight

47 kg
(103.62 lb)

Height

1,275 mm
(50.2 in)

Length

756 mm
(29.8 in)

Width

546 mm
(21.5 in)

Description

HTC D20 recommended for HTC 280 and 450. With two HEPA H13 filters, it can handle the finest concrete dust. The machine is easy to use with puncture-proof tires and locks on the front wheels. It’s also equipped with time counter, vacuum gauge and Longopac® system for safe dust handling. H Classified The international standard for testing dust and water extractors (IEC-60335-2-69, EN-60335-2-69) encompasses three classes – L for low, M for medium and H for high – with the H class being the most stringent (do not confuse this “H” with the one in HEPA H13). HTC D10, D20 and D30 are H classified. H13 Filter HEPA (High Efficiency Particulate Air) is a highly efficient particle filter for air. The stringent HEPA standard (EN 1822-1) is divided into different levels (E10 to H14) depending on the filter efficiency. HTC uses level H13, which can separate up to 99.95% of the particles in sizes 0.15 to 0.30 μm. These particle sizes are the most difficult to separate – both larger and smaller particles are easier to catch in a filter. Besides this, HTC tests each individual filter prior to delivery to ensure that they comply with the HEPA H13 standard. 3-step filtration for your safety The cyclone separates the largest particles, which go to the Longopac bags. The prefilter (conical filter) handles the finer dust that is not separated in the whirler. Lastly, the air passes through a certified HEPA H13 filter that separates 99.95% of the smallest and most dangerous particles. Airflow indicator Find out when it's time to clean or change filters. H-classified assortment for your safety HTC D10, D20 and D30 are all in compliance with the highest international standard “H”.

VIDEO
