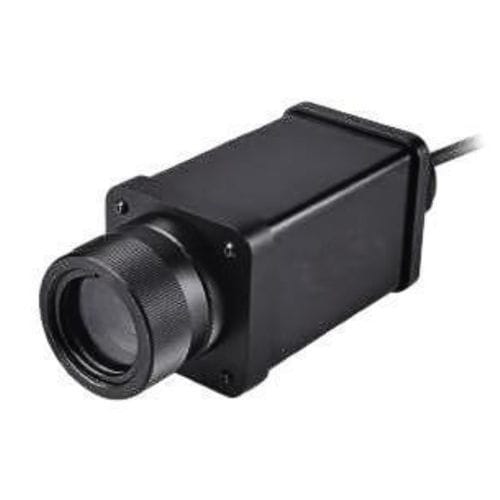

Short-wave infrared imager RBIS80H10

industrialthermalhigh-performance

■ 640×480 pixel high-performance CMOS sensor ■ 1μm spectral response wavelength, enabling precise measurement of high-temperature metals ■ 400°C~1600°C (segmented), suitable for various metal heat treatment temperature measurements ■ Professional temperature analysis software with secondary development SDK support Technical Specifications Pixel - 640×480 Spectral Response - 1μm Temperature Measurement Range - H10L: 400°C~900°C H10: 680°C~1600°C Frame Rate - 20Hz Optical Lens - 14°×10.5° (f=12.5mm) 11°×8° (f=16mm) Thermal Sensitivity - 1°C Temperature Accuracy - 1%×Reading Communication Interface - USB 3.0 or Gigabit Ethernet Operating Temperature - 0°C~45°C Storage Temperature - -20°C~70°C Relative Humidity - 20%～80%, non-condensing Mounting Hole - 1/4-20 UNC Power Supply - USB 3.0 or POE power supply Dimensions/Weight - L128.6×W56×H56mm/504g
