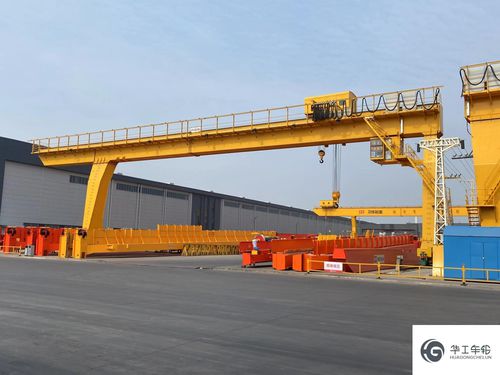

Rail-mounted gantry crane L

for marine applicationsfor workshopsfor heavy loads

1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system. 2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side. 3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib. 4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users. Design characteristic: This kind of 5 Ton Portable Single Girder Mobile Gantry Crane Price beam design is just like a letter “L”, it could pass the big volume items, and this is a development of normal single beam 5 Ton Portable Single Girder Mobile Gantry Crane Price. The lifting mechanism have TWO MODEL: 1) L Type Strong Crab Trolley Single Girder Mobile Gantry Crane 2) L Type hoist Single Girder Mobile Gantry Crane
