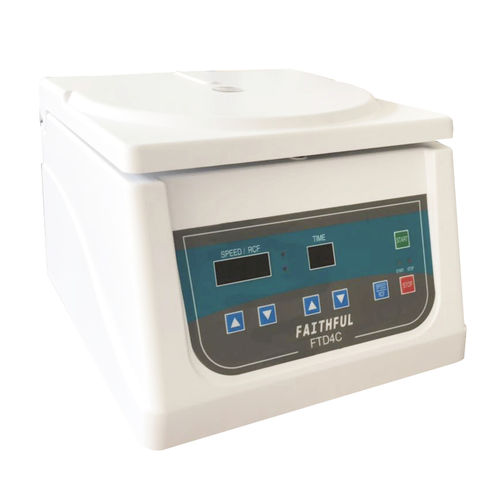

Laboratory centrifuge FTD4C

tabletopverticaltop-loading

Technical Parameter Maxinnum running speed: 4000r/min Maximum centrifugal: 2350Xg Rotor capacity for maximum speed: 12 × 15ml Maximum capacity: 12 × 15ml Rotor speed for maximum capacity: 4000r/min Noise: ≤55dB Power supply: AC220V 50Hz 5A Relative humidity: ≤85% Ambient temp: 5℃~30℃ Overall dimension: 270 × 290 × 230mm Main Construction and Feature The centrifuge consists of carcass, driving component, rotor, electric control component, and refrigerating component of compressor unit etc. It is driven directly by direct current brushless motor, and made damped vibration attenuation with special dampener, there for which is of small vibration and low noise, and is of high control precision of rotating speed and time with module control. Mating Rotor Mating rotor table ( Please order otherwise when user has special requirement. ) The rotor of the machine is mated according to order requiretnent and operated according to set parameter. InstaIIation Requirement 1.Installing position should select the strong flat and prevent the influence of external vibration to the machine. 2.Prevent the sunlight from direct irradiation. Indoor should be siccity and cleaning 3.Distance iörm the machine to wall should be more than 4.Installing rotor. and Inaking location and fastening. 5.Power supply should be one-way 22V. Electric Plug capacity should be no less than Individual earth wire should be firmly connected.
