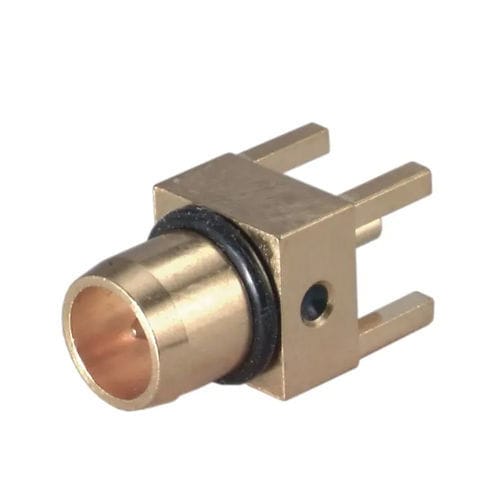

RF connector 81_BMA-50-0-1/111_N

BMAcircularthrough-hole

Offers a range of floating configurations High reliability and ease of assembly Intermatable with the OSP connectors series Applicable in frequencies up to 18 GHz Specifications Product configuration Interface type - BMA Gender - plug Standard - IEC 60169-33_MIL-STD-348A/321 Material data Centre contact - Copper Beryllium Alloy / Gold Plating (Nickel underplated) Outer conductor - Copper Beryllium Alloy / Gold Plating (Nickel underplated) Body - Copper Beryllium Alloy / Gold Plating (Nickel underplated) Insulator - PFA / PTFE Gasket - NR (Natural Rubber) Electrical data Impedance - 50 Ω Interface frequency - 18 GHz Frequency range - Return loss - VSWR Mechanical data Weight - 0.0018 kg Mating cycles - 1000 Board mounting type - through holes Number of printlegs - 4 Height above PCB HA - 8.7 mm Height of stand off HS - 0 mm Environmental data Operation temperature - -65 °C ... 125 °C Material compliance ROHS Directive - RoHS 2011/65/EU and (EU) 2015/863 Rating - Compliant with exemption Exemptions - 6c Material compliance REACH Regulation - REACH 1907/2006 Article 33 SVHC Rating - Contains one or more SVHC >0,1% Details - CAS: 7439-92-1 Lead
