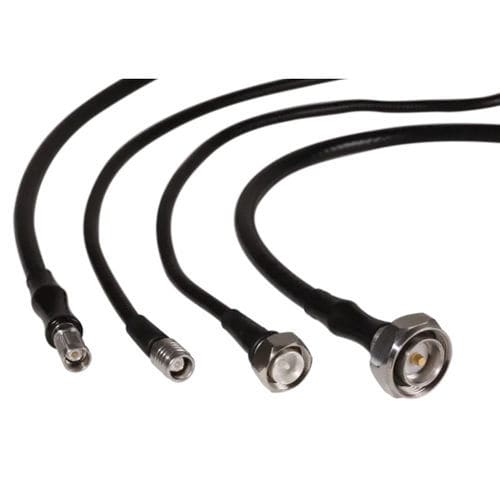

Signal cable harness LISCA

RFstraightcorrugated

Applicable in frequencies up to 6 GHz Excellent RF performance Installation in harsh environment 100% electrically tested up to 3.8GHz Specifications Product configuration Type description connector A - 4.3-10, straight, male Type description connector B - 7/16, straight, male Length - 6000 mm Length type - REF to REF Electrical data Impedance - 50 Ω Max. operating frequency - 6 GHz Passive intermodulation (IM3) - ≥160 dBc; 2x 20 W; at 1.8 GHz Electrical Data (frequency related) Frequency range - Return loss - VSWR max - Insertion loss Mechanical data Weight - 1.04 kg Static bending radius - 25 mm Repeated bending radius - 50 mm Environmental data Operation temperature - -40 °C ... 85 °C Ingress protection (IP Rating) - Mated / IP68 (24 h of water, 1 m) Material compliance ROHS Directive - RoHS 2011/65/EU and (EU) 2015/863 Rating - Compliant with exemption Exemptions - 6c Material compliance REACH Regulation - REACH 1907/2006 Article 33 SVHC Rating - Candidate list Details - CAS: 7439-92-1 Lead
