Sludge treatment separator screen STRAINPRESS®

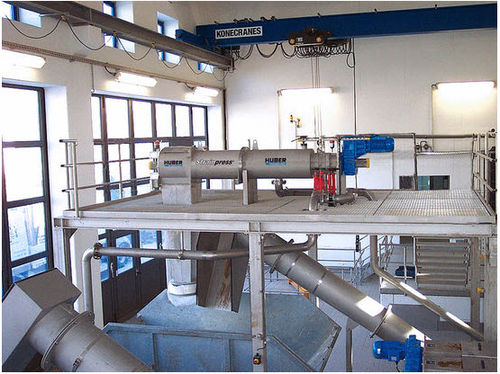

Coarse material separator for municipal and industrial sludge and process water Screening, dewatering and discharge in one working process Continuous coarse material separation under pressure The STRAINPRESS® is a horizontal pipe-shaped coarse material separator which consists of inlet and driving zone, screening and press zone and finally a discharge section with a conical pressure regulating device. The coarse material is separated continuously under pressure and periodical cleaning of the screening zone by backwashing is not required. .Coarse material screening and dewatering to approx. 45 % DS content Closed pipework system Pressure-fed system (in-line) for any type of sludge including viscous and grease containing sludge Reduces plant operation and maintenance costs and increases the operating reliability of downstream sludge treatment systems, such as thickening, digestion, dewatering, hygienisation, drying, etc. Perforations of 0.4 to 10 mm for solids/liquid separation also in industrial applications Throughput capacity of up to 110 m³/h for sludge, up to 200 m³/h for process water Reliable perforated plate cleaning without the need for any external water and without brushes, no backflushing required Automatic pressure cone system for maximum dewatering efficiency More than 1,000 installations worldwide
