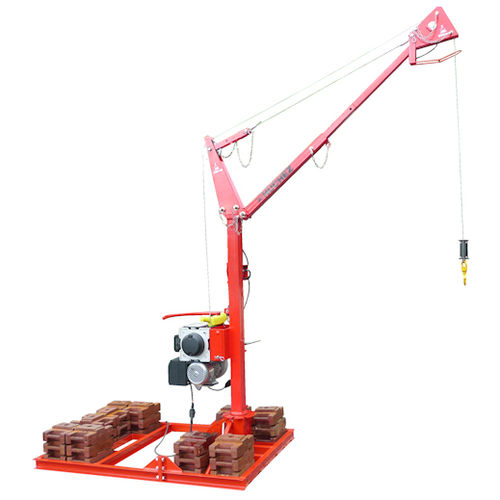

Fixed crane GS250

boomarticulatedmultiple arm

Use: • - Underground network works. • - Roads. • - Terrace works. • - Welded construction. • - Dismontable in 6 elements and articulated. • - Protected by paint. • - 360°. • - 230 V power supply, single phase - 50 Hz. • - TRBoxter electric winch with frequency inverter for speed variation, with very low voltage remote control, P = 1.1 kW specifically adapted to this crane. • - Upper limit switch on the jib and lower limit switch on the winch. • - Counterweight kit as option, 30 weight of 25 kg. • - Wheel base: 1,15 x 1,65 m. • - Rope and hook included. Technical characteristics Multi-crane GS250, single phase Capacity kg - 250 Range (hedge of chassis) m - 1.30 Max. wire rope cap. m - 42 Speed m/min - 2.3 to 23 Power - 1 Ph - 230 V Weight (without ballast) kg - 260
