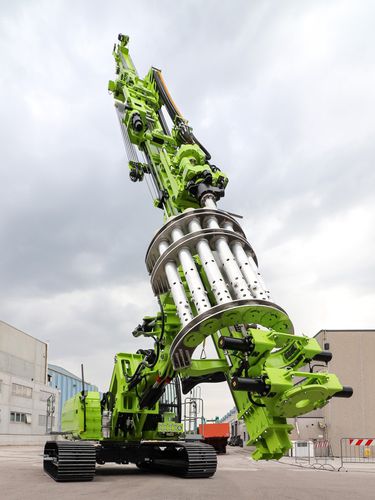

Horizontal drilling rig HBR 710

rotaryhydraulicdiesel engine

Designed for the increasingly challenging drilling operations, the new model, powered by a 209 kW diesel engine, scores with a high performance on the one hand and provides an engine which meets the latest EU and US standards on the other hand. The telescopic extendable crawlers ensure a high level of stability, even on rugged grounds. Offering cutting-edge technology, the drilling rig offers a wide range of use for the customers like e.g. anchoring, micropiling etc. One outstanding feature of the new Hütte HBR 710 is the kinematic. The combination of turntable and front-the-wall kinematic is unique.The mast movement covers a range of 90 ° left/right direction and it can also drill below the surface. Safety standards and handling facilitations of the drilling rig are even more increased by the use of a magazine type M3-2 for up to 5m rods and casing in horizontal / inclined / vertical direction. This can also be operated from inside the cabin without any personal intervention at the magazine.The hydraulic system is equipped with load-sensing circuit with high efficiency pumps and distributors. This allows all kinds of applications like double head, vibro or sonic drilling in the field special foundation engineering.
