Digital I/O module 1684i0088

EthernetUSBHDMI

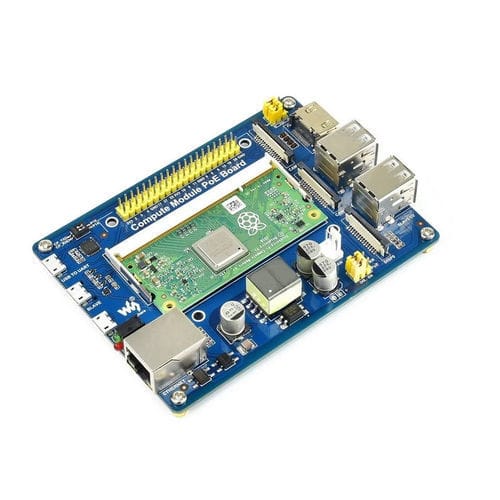

China Raspberry Pi PoE Feature Compute Module IO Board Manufactures Place of Origin:Guangdong, China Product name:Raspberry Pi Module IO Board Type:Electroplated Gold + Gold Finger Usage:OEM Electronics Certificate:ROSH. ISO9001 Solder mask:Green. Red. Blue. White. Black.Yellow Material:FR4 /aluminum/ceramic CEM1 Service:One Stop Turkey Service Function:Control Key Board PCB PCB Standard:IPC-A-600 Overview The Compute Module PoE Board is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile onboard peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products. Features * Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs * 10/100M auto-negotiation Ethernet port, with PoE enabled * 4x USB ports, allows connecting more USB devices * 2x CSI camera interfaces * Onboard HDMI / DSI interfaces for connecting displays * Onboard USB TO UART, for serial debugging * Cooling fan interface, auto run on power up OR controlled by IO pins * Adopts isolated SMPS (Switching Mode Power Supply) Specifications * Power supply: micro USB port / PoE Ethernet port * PoE power input: 37V ~ 57V DC in * PoE power output: 5V 2.5A DC out * Network standard: 802.3af PoE standard * Dimensions: 114mm × 84.4mm * Mounting hole size: 3.2mm 1. Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L) 2. Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
