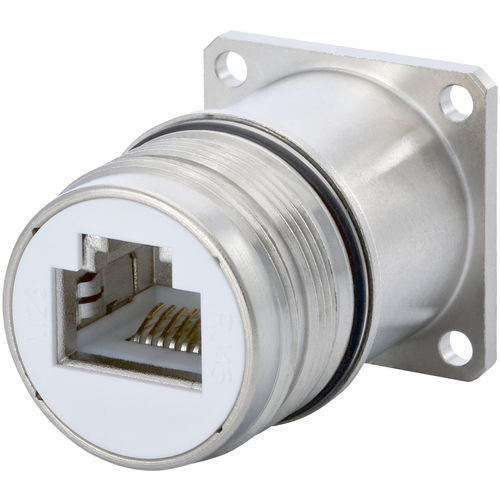

Data connector 7R41008000RJ45circularplug-in
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45
- Shape
- circular
- Connection type
- plug-in, flange, screw-locked
- Size
- M23
- Electrical characteristics
- 8-pole
- Material
- brass, die-cast zinc
- Product applications
- external thread, panel
- Protection class
- IP67, IP69K
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
7R41008000 M23 RJ45 panel connector
Material housing - brass,Zinc Die Cast
Material housing surface - Nickel
Installation type - Front wall
External thread plug-in side - M23 x 1
Locking type - Screw
Shield - unshielded
Seal type - O-Ring
Material seals/o-rings - FKM (FPM),NBR
Coding position - Panel hole - Ø 20 + 0,1 mm
Flange - 25 x 25 mm
Hole distance - 19.8 mm
Hole diameter - 4 x Ø 2,7 mm
Length (L) - 34.5 mm
