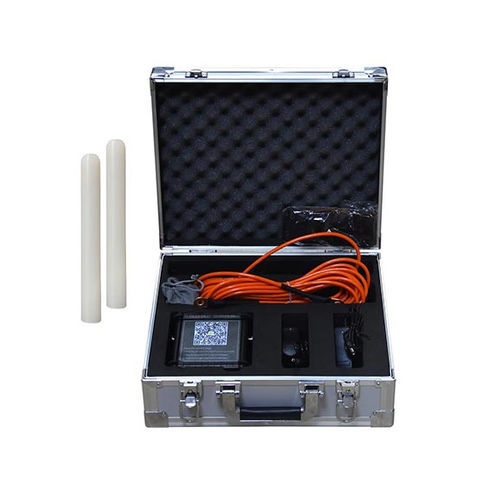

Conductivity detector PQWT-M200

electromagneticLEDwater

it is based on the field source of earth's electromagnetic field and differences in conductivity of different underground geological structures, to study the variation law of electric field components at different frequencies to study the geological structure and changes. Changes in geological structure are displayed in real-time through multiple curves. Automatic mapping geological profile by one key operate easily, get rid of complicated computer graphics. Geological structure and specific information such as aquifers, fractures, faults, and caves can be easily analyzed through automatic mapping curve and profile on site . The device can be widely used in different terrains such as plains, hills, mountains, plateaus, and basins for rapid analysis of geological structure changes and determines the well locations, aquifers, and aquifer depth. Specifications Measuring depth - 0-200m Measuring frequency - Single frequency, three frequency, 36 frequency Power supply - # 3000mAh Rechargeable lithium battery A/D conversion - 12-bit 1Msps Measuring range - 0mV－1000mV The instrument automatically switches the range Measuring accuracy - 0.001 mV Measurement channel - Four channels Unit of measurement data - The electric field components of different frequencies of the earth electromagnetic field △Vs (mV) Channel gain - 0~200,000 times Languages - Different lanaguage Power consumption - About 4W Display - LED indicator Working hours - 6-8 hours G.W/Shipping - G.W: 6KG, DHL/UPS/ Fedex to door service Competitive Advantage 1. Be suitable for plain, hill, mountain land, highland, basin all kinds of geologic structure application;
