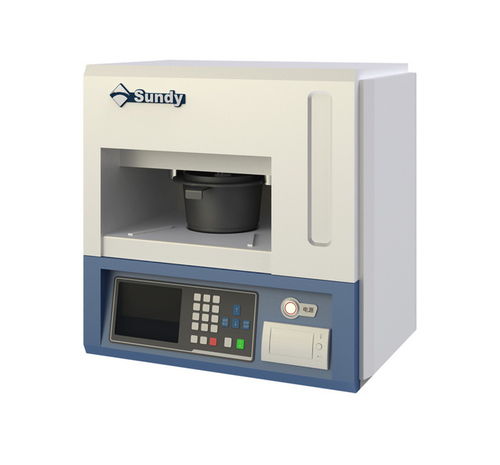

HGI tester SDHG60a

for coalindustrialautomatic

Application This instrument can be used to determine grindability of coal in coal industry, power plants, metallurgical industry and scientific research, etc. Conformance to Standards SO 5074:1994 Hard coal–Determination of Hardgrove Grindability Index. ASTM D409-08 Standard Test Method for Grindability of Coal by the Hardgrove-Machine Method. Specification Spindle RPM 20±1r/min Working Revolution 60r Grinding Bowl Capacity 50g Ball Diameter 25.4mm Vertical Pressure of Grinding 284±2N Power Requirement 220V, 50/60 Hz Feed size 0.63~1.25mm Highlights： ①With microcomputer intelligent controlling system, real time display of working status and process. ②High automation: Auto-lifting and loading, automatic revolution and counting, and stop automatically after 60 round. ③With built-in linear regression correction curve, calculation and calibration can be finished automatically. ④With emergency stop function. If restart, revolution counting can accumulate. ⑤With film key and LCD screen, it's easy to operate. ⑥Connection with balance is available; Data can be stored automatically; With micro-printer, it can realize the functions of date query, automatic calculation, result print and so on. Conformance to standard ISO 5074:1994 Hard coal – Determination of Hardgrove Grindability Index. ASTM D 409-08 Standard Test Method for Grindability of Coal by the Hardgrove-Machine Method.
