nitrogen analyzer / carbon / hydrogen / elemental
SDCHN536

{{requestButtons}}

Characteristics

  • Measured entity:

    nitrogen, carbon, hydrogen

  • Measured value:

    elemental

  • Other characteristics:

    power plant, infrared

Description

Application:

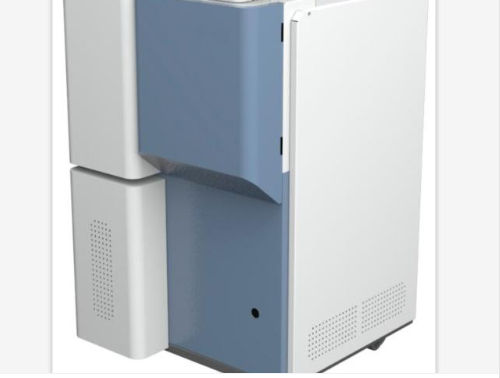

Sundy SDCHN536 Carbon Hydrogen & Nitrogen Analyzer can be used to determine the carbon, hydrogen and nitrogen content in coal,coke,food,solid wastes,soil,fertilizer,etc in the fields of power plant,coal mine,metallurgy,petrochemical industry,steel factory environmental industry and so on.
Stackable auto loader, 36 samples per layer,2 layers with 72 samples available

Highlights

High Automation.

①Autoloader with 36 positions(72 optional),samples can be added or replaced in the process of testing.

②Automatic sample introduction and testing,realize to work unattended.



Short Thermostatic Time and High Test Efficiency.

①Independent and accurate thermostatic control for analyzer and sensor unit,thermostatic time only need 90 minutes.



High Precision.

①Sample introduction component adopted air curtain design,it can prevent the air into the furnace.and auxiliary by flow equalize unit,guarantee the sample combustion completed,avoid sample splashing when drop,ensure the test result is accurate.

②Adopted high-performance and precision IR sensor to testing the carbon and hydrogen element,and monitoring the combustion situation in real time,competently assess the combustion completion,shorten the test time and obtain a high precision test result.

③With high sensitivity and ultra low temperature drift diffusion type thermal conductivity cell,independent and accurate thermostatic control,ensure the thermal conductivity baseline stable.
