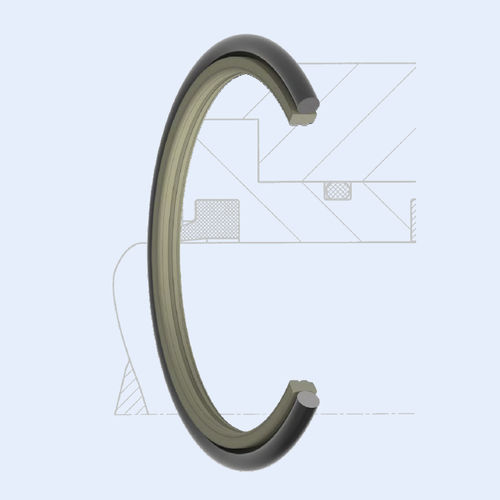

O-ring seal GODI-SPE seriesNBREPDMoil
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Material
- NBR, EPDM
- Application
- oil, profile, slide
- Temperature limit
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)- Pressure limit
360 bar
(5,221.4 psi)- Diameter
Max.: 999 mm
(39.331 in)Min.: 8 mm
(0.315 in)- Outer diameter
Max.: 364 mm
(14.331 in)Min.: 15.3 mm
(0.602 in)- Shore A hardness
40 unit
- Speed
1 m/s
(3.3 ft/s)
Description
Slide and O-Ring Seal
Pressure Released, inside sealing
The HUNGER slide and O-Ring seal type GODA-SPE
is a single acting seal with pressure releasing profile to
one side. The pressure discharge reduces the friction
in pressurized condition and allows the seal to react
more sensitive to pressure changes.
The seal additionally has the ability to convey leakage
oil which may arise from the seal gap back into the
system.
The GODA-SPE is available in the common installation
dimensions, like e.g. for installation grooves in accordance
with DIN ISO 7425-2.
