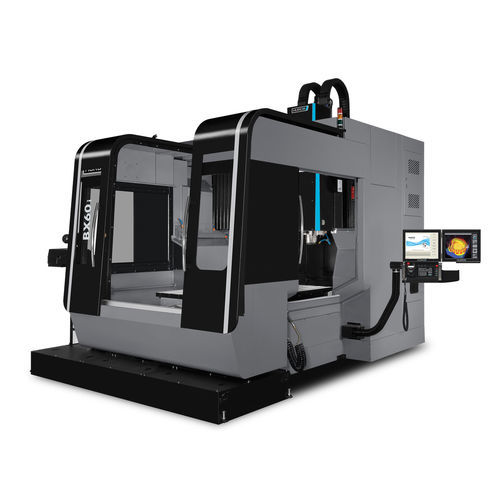

3-axis CNC machining center BX 60iverticaldouble-columnHSK-63-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Spindle mount
- HSK-63-A
- Number of tool stations
- 30 tools, 50 tools
- X travel
1,600 mm
(62.99 in)- Y travel
1,300 mm
(51.18 in)- Z travel
700 mm
(27.56 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Power
35 kW
(47.59 hp)- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
6,000 kg
(13,228 lb)- Tool weight (max)
7 kg
(15.4 lb)- Weight
20,000 kg
(44,092.45 lb)- Overall length
5,398 mm
(212.5 in)- Overall width
5,256 mm
(206.9 in)- Overall height
3,800 mm
(149.6 in)
Description
Stability combines with exceptional accuracy and outstandidng surface finish capabilities
TABLE
Spindle nose – table (mm) - 180 - 880
Table working surface W x D (mm) - 1.900 x 1.300
T-Slots (DIN 650) - 8 x 22 x 160
-
SPINDLE
Spindle Torque max. (Nm) - 119
AUTOMATIC TOOL CHANGER
Tool diameter max. (mm) - 80 / 75
Tool length max. (mm) - 300
