steam boiler / wood / vertical
VHF series

Add to MyDirectIndustry favorites
Compare this product
steam boiler / wood / vertical steam boiler / wood / vertical - VHF series
{{requestButtons}}

Characteristics

  • Product:

    steam

  • Power source:

    wood

  • Other characteristics:

    vertical

  • Power:

    8,000,000 BTU/h

  • Pressure:

    Min.: 15 psi

    Max.: 150 psi

Description

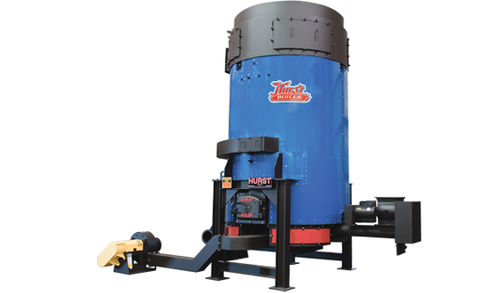

The VHF (Vertical Hand Fired) Hybrid Boiler is the latest advance from Hurst, representing our ongoing development in Solid Fuel Boiler Technology.

The VHF was primarily designed to utilize high density, processed fuels like woods pellets. However, this system is capable of operating on coal and other high BTU content fuels. The VHF Hand Fired Hybrid boiler was also designed to be compact for existing building applications. In most cases, this hand fired style Solid Fuel Boiler design can be installed within the same footprint as your existing packaged gas/oil fired boiler.

The VHF Hybrid Boiler is available in 5 Base Model Choices:

50, 100,150,200, 250 HP, in both Steam and Hot Water Systems with steam pressures of 15 PSI up to 150 PSI & 30 PSI Hot Water up to 60 PSI Hot Water.
