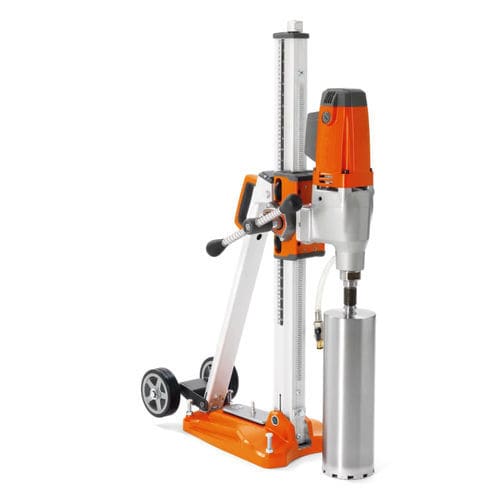

Electric core drilling machine DMS 240

column typelightweighthigh-power

Product description
DMS 240 is an electric core drill motor with stand system for a wide range of core drilling tasks. It is the most powerful unit in the drill motor/stand range and is intended for medium core drilling in walls, floors and roofs up to 250 mm diameter. The stand is easily tilted and the rear support provides reliable, stable angle drilling, reducing setup time and operator fatigue. Typical uses include drilling ventilation ducts, plumbing channels, waste evacuation pipes and holes for barriers and road signs.

Key features

• Optimum feed/cranking speed (carriage with single and double gearing)
• User-friendly base plate (lightweight aluminium base plate with integrated vacuum base)
• Overload protection to increase productivity and service life
• Easy transportation (stand equipped with transport wheels)
• Angle drilling with stepless adjustable angles (tiltable column)
• Horizontal drilling capability
• Drilling for channels, pipes and cables (ventilation ducts, pipe and cable holes)
• Stitch drilling (multiple adjacent holes to form openings)
• Water evacuation drilling

Technical specifications

• Rated input power: 2.4 kW
• Weight (complete product): 27.5 kg
• Drill bit diameter, max: 250 mm
• Travel length, max: 685 mm
• Column angling: 0–60°
• Rated: DRILL MOTOR DMS 240 220-240 V | 1-ph | 50 Hz | EU
• Art nr: 965 17 36‑03
