Concrete cutter FS 413

Product description

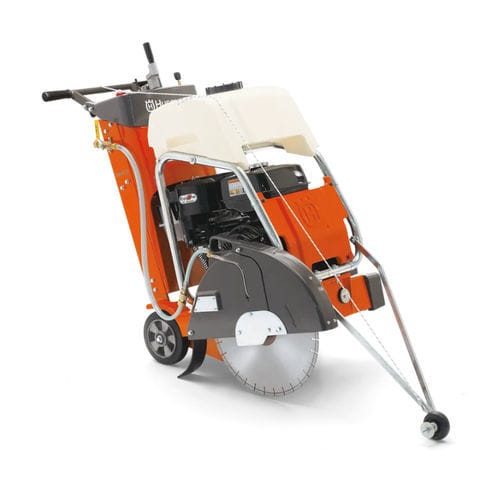

The Husqvarna FS 413 is a compact petrol push floor saw designed for operator comfort and efficient cutting in asphalt and concrete. Suitable for small to mid-sized service and repair jobs. Cuts up to 189 mm deep and accepts blades up to 500 mm. Shown with optional water tank.

Key features

• Low vibrations: engine and blade-shaft mounting system improves operator comfort and cutting performance.
• Low maintenance: IntelliSeal sealed blade shaft allows a minimum of 250 hours without daily greasing of bearings.
• Easy blade adjustment: spring-assisted screw feed for simple raising and lowering of the blade.
• Easy to transport: compact, easy-to-lift design; handles fold for transport.
• Adjustable handles: allow a closer, more comfortable position to the cutting side for better alignment and straighter cuts.
• Clear depth indicator: adjustable for all blade diameters.

Technical data (top specifications)
Power source: Petrol
Engine power (manufacturer rating): 8.7 kW
Blade diameter, max: 500 mm
Cutting depth, max: 189 mm

Article / ordering information

• Article description: FLOOR SAW FS 413 11,7 hp | 500mm | CE | Honda | w/tank
• Art nr: 965 15 01‑02

Characteristics / technical specifications

• Model: FS 413
• Power source: Petrol
• Engine power (manufacturer): 8.7 kW
• Blade diameter, maximum: 500 mm
• Maximum cutting depth: 189 mm
• IntelliSeal sealed blade shaft for long maintenance intervals (min. 250 hours without daily greasing)
• Spring-assisted screw feed for blade raising/lowering
• Adjustable and foldable handles for transport and closer cutting position
• Compact, easy-to-lift design; shown with optional water tank
