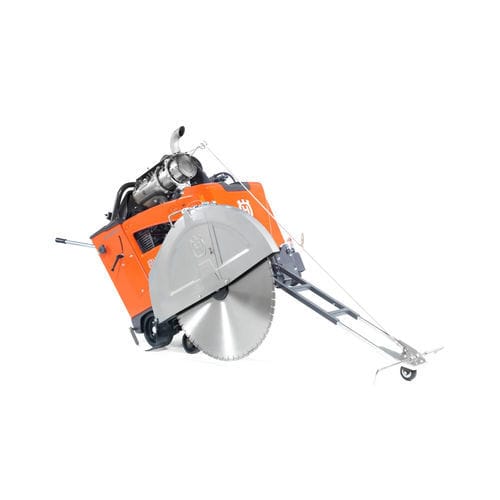

Concrete cutter FS 5000 D

Product overview
Husqvarna FS 5000 D is a diesel floor saw for cutting asphalt and concrete up to 374 mm depth. It meets Tier 4 / Stage IIIB emissions regulations and is offered with single-speed or 3-speed gearbox variants and optional self-propelled drive. Compact dimensions and optimised weight distribution support high productivity and easy handling on service and roadworks.

Key features

• Common-rail diesel engine with fuel-efficient combustion and low emissions (DPF-equipped).
• Digital, ergonomic control panel: blade rpm, forward speed, electronic tracking, depth gauge, belt/pulley ratios, runtime and service reminders.
• Electronic tracking system for straight cuts with position indicator, auto return to neutral and memory for last setting.
• Right-angle gearbox for high torque transmission and reduced vibrations to the blade shaft.
• Adjustable and foldable handles and telescopic pointer for improved visibility and compact transport.
• Blade clutch for safe transport and rapid disengagement in case of blade jam.
• Lockable-hinge blade guard for quick assembly and disassembly.
• Automatic depth stop adjustable for all blade diameters.
• IntelliSeal blade shaft system reducing daily maintenance (approx. 250 hours without daily greasing).
• Available 3-speed gearbox variant for optimised power/speed across multiple blade sizes.
• Self-propelled option for easier operation and comfort.

Variants & options
Selectable blade diameters and cutting depths allow adaptation to different applications. Available accessories include blade clutch, electronic tracking on rear axle, 5th wheel, light kit, water pump kit and weight kits. Typical listing reference: FLOOR SAW FS 5000 D 48 hp | 900mm | CE | FP 3SPD ETRK w/cl.

Technical specifications

• Power source: Diesel
• Engine power (manufacturer rating): 35.5 kW
• Blade diameter, max: 900 mm
• Cutting depth, max: 374 mm
• Selectable cutting depth examples: 193 mm, 312 mm, 374 mm
• Selectable blade diameter examples: 500 mm, 750 mm, 900 mm
• Number of gearbox speeds: 1 (single-speed) or 3 (3-speed available)
• Typical model/variant shown: FLOOR SAW FS 5000 D 48 hp | 900mm | CE | FP 3SPD ETRK w/cl
• Example article number: 967 20 73‑40
