Concrete cutter WS 482 HF

Product description

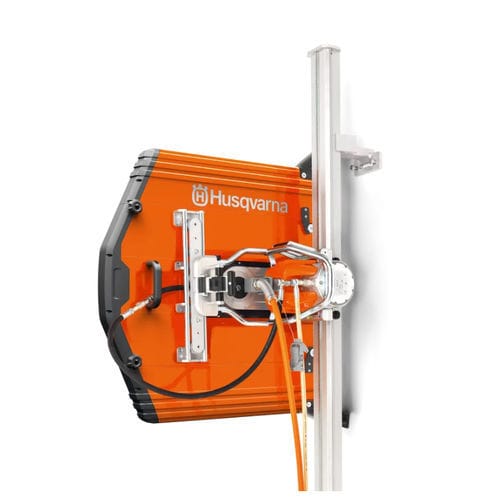

Husqvarna WS 482 HF is a water-cooled electric wall saw for cutting reinforced concrete, brick and other building materials up to 730 mm depth. The lightweight saw head combined with a powerful spindle delivers an excellent power-to-weight ratio. The modular design allows easy assembly, transport and operation; suitable for stair, bevel and flush cutting. The unit can be converted to a wire saw with CS 10 or to a chain saw with WSC 40 for corner finishing.

Key specifications

• Starter blade diameter, max: 1000 mm
• Blade diameter, max: 1600 mm
• Max spindle torque: 230 Nm
• Max cutting depth: 730 mm
• Power to spindle: 19 kW (at 32 A)
• Saw head weight (approx.): 28.0 kg

Benefits

• Improved control and cutting precision
• Efficient, fast sawing for higher productivity
• Outstanding power-to-weight ratio for easier handling
• Quick to transport, assemble and set up on site

Features overview

• Two driving modes: standard and manual for extra control
• Independent operation of blade motor and feed motors at full power
• Powerful spindle motor delivering 19 kW at 32 A
• Extremely light saw head (approx. 28.0 kg)
• Large starter blade capacity for deep cuts without frequent changes
• Supports blades up to 1600 mm via two-speed gearbox
• High-efficiency water-cooled motor with minimal water use
• User-friendly wireless remote with clear performance display
• Remote blade-direction change to control water spray
• Symmetric track and carriage allow sawing on both sides
• Straight cuts with minimal wear due to short track-to-blade distance
• Variable spindle rpm to optimise speed for blade and material
• Durable, lightweight aluminium blade guard; easy to install
• Easy blade changes via flange design (suitable for flush cutting)
• Quick connection for fast mounting of saw unit to carriage
• Suitable for door and window openings, ventilation channels and special cuts (steps, dovetail)

Product variant / Article number
WALL SAW WS 482 HF without blade guard — Art nr: 967 64 67‑01

Technical specifications

• Starter blade diameter (max): 1000 mm
• Blade diameter (max): 1600 mm
• Maximum spindle torque: 230 Nm
• Maximum cutting depth: 730 mm
• Power to spindle: 19 kW (at 32 A)
• Saw head weight (approx.): 28.0 kg
• Two-speed gearbox for wide rpm range
• Water-cooled electric motor; minimal water usage
• Wireless remote control with performance display
• Modular design for easy assembly, transport and handling
• Compatible with CS 10 (wire saw) and WSC 40 (chain saw)
