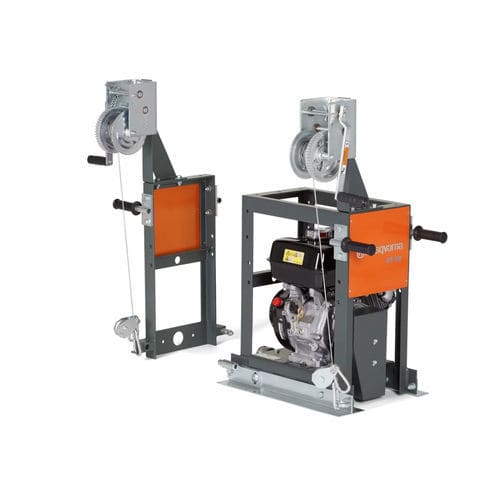

Flooring screed screeding machine BT 90 Petrol

Product description
The Husqvarna BT 90 petrol modular truss screed (petrol set) is designed for levelling, compacting and finishing concrete surfaces up to 20 m wide, including airport runways and bridge decks. It assembles quickly by a single operator and allows independent camber adjustment of sections. A range of accessories (winches, outriggers, extensions) provides flexible configurations for site-specific tasks.

Key benefits

• Modular design for fast assembly and configurable lengths
• Single‑operator setup and camber adjustment
• Stable operation with low centre of gravity for low-slump concrete
• Continuous, even pull for long spans using twin winches
• Service-friendly components (oscillating bearings with grease nipples)

Features

• Modular truss screed sections with precision turn-buckle for independent camber setting
• Triangular frames and square tube construction for increased rigidity
• Low-profile steel frame to lower centre of gravity
• Oscillating bearings fitted with grease nipples for extended service intervals
• Winches on both sides with 30 m steel wire for long-span operation
• Multiple accessories available: winches, outriggers, extensions and attachment brackets

Typical applications

• Large floor slabs up to approx. 20 m wide
• Airport runways
• Bridge decks

Additional model information
MODULAR TRUSS SCREED BT 90 | HONDA GX270 | COMPLETE PETROL SET
Art nr: 967 94 11‑03

Tech data (table)
Power Source: Petrol
Engine Power (as rated by the engine manufacturer): 5 kW

Technical specifications

• Product type: Modular truss screed (petrol set)
• Designed for: Floors up to 20 m wide, runways and bridges
• Assembly: Easy to assemble by a single operator; adjustable camber
• Durability: Triangular frames, square tubes, oscillating bearings with grease nipples
• Configuration options: Winches (30 m steel wire), outriggers, extensions and other accessories
• Article number: 967 94 11‑03
