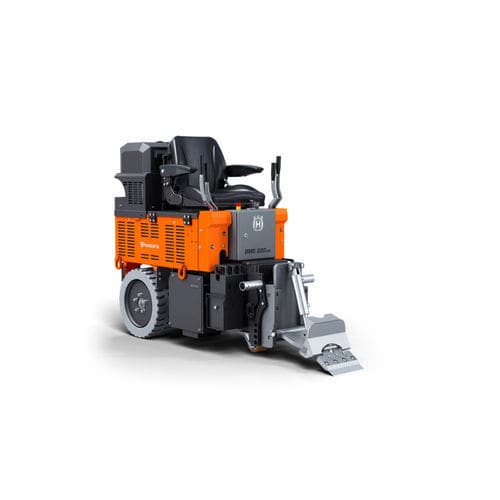

Floor scraper BMS 220ADB

Overview
Battery-powered floor scraper designed for medium to large applications. Provides cordless operation with long run time and high manoeuvrability thanks to zero-turn capability, non-marking tires and full hydraulic control. Operator works from a comfortable seat and adjusts blade angle/height using simple levers. Compatible with a wide range of blades and chisels for different flooring materials.

Key features

• Long run time — 12 batteries delivering approximately 6–8 hours of operation; easily accessible battery-disconnect plug for fast measurements without tools; on-board heavy-duty charger rated IP66 and shock/vibration resistant (UL1236-7); two spare breaking bolts mounted at the rear.
• Operator controls — Ergonomic handles enable precise forward/reverse control; Dual-Lift system allows angle and height adjustment of the cutting head from the seat; blade adjustments via user-friendly levers.
• Mobility & transport — Zero turn radius and hydraulic drive for confined spaces; non-marking tires to protect surfaces; four lifting lugs, prepared forklift bracket and tie-down points above the centre of gravity for safe transport.
• Protection & durability — Protective plate shields hydraulic cylinder and hoses from debris and snagging; replaceable bumpers protect machine and walls.

Applications

• Removal of hardwood parquet, ceramics, linoleum, vinyl, carpet, adhesives, glue and tiles
• Surface preparation in renovation and commercial projects

Technical specifications

• Output power: 4 kW
• Weight (complete product w/o side packed articles): 960 kg
• Model: BMS 220ADB
• Battery system: 12 batteries, run time approx. 6–8 hours
• Charger: on-board heavy-duty charger, IP66 rated, shock and vibration resistant (UL1236-7)
• Mobility: zero turn radius, hydraulic drive, non-marking tires
• Operator controls: ergonomic handles, Dual-Lift system, blade adjustable via levers
• Transport features: four lifting lugs, forklift bracket, tie-down points
• Protection: protective plate for hydraulic components; replaceable bumpers

Article information
FLOOR SCRAPER BMS 220ADB | GLOBAL — Art nr: 970 61 54‑01
