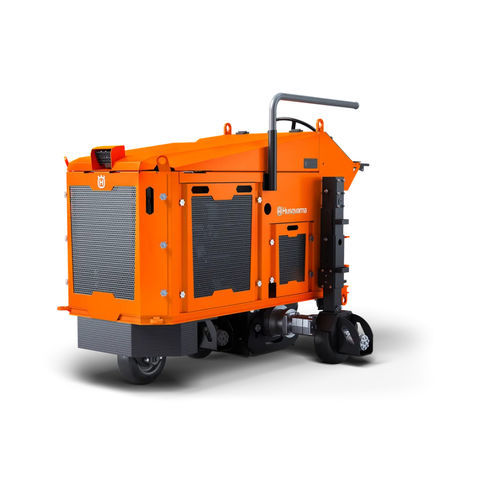

Floor saw BMP 4000RC

for stone and concretehydraulic

Product description
BMP 4000RC is a heavy-duty remote-controlled milling and sawing machine designed for large-scale milling and sawing applications such as road construction and industrial flooring. The machine is multifunctional: by changing the hydraulic motor you can switch between milling and sawing technologies. It features a double hydraulic micrometric depth adjustment to set working depth precisely and minimise the risk of subgrade damage. Its increased weight enables more efficient and accurate sawing and milling operations.

Key features

• Precise height adjustment: drum working depth is easily adjustable with rapid lift/lower of the milling drum mechanism.
• Automatic leveling: optional laser system keeps the machine level and provides slope information on an operator display.
• Efficient dust handling: large dust hose connection (150 mm) to reduce onsite dust exposure.
• Remote operation: remote-controlled design for demanding milling, scarifying and sawing tasks on large surfaces.

Technical data
Working width: 40 cm
Output power: 30 kW
Voltage: 400 V
Weight: 2,112 kg
Article no.: 970 61 60-03

Detailed functions

• Multifunctional: swap between milling and sawing by replacing the hydraulic motor.
• Double micrometric hydraulic depth adjustment to protect the subgrade and ensure repeatable depth control.
• High machine weight optimised for precise sawing and cutting performance.
• Large dust connection (150 mm) for improved dust extraction and safer work environment.
• Compatibility with optional laser leveling and operator display for slope monitoring and easy setup.

Specifications

• Working width: 40 cm
• Output power: 30 kW
• Voltage: 400 V
• Weight: 2,112 kg
• Dust connection diameter: 150 mm
• Product reference: 970 61 60-03
