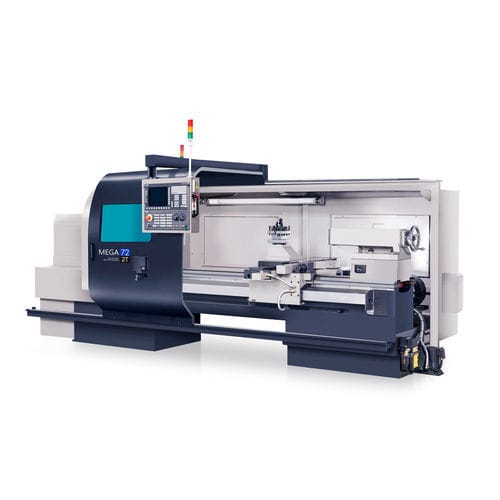

CNC turning center MEGA-722-axisflatbedA2-8
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- flatbed
- Spindle mount
- A2-8
- Number of tool stations
- 4 tools
- Performance
- precision, high-rigidity
- Diameter
720 mm
(28.35 in)- Axe X
360 mm
(14 in)- Axe Z
1,900 mm, 2,900 mm
(75 in, 114 in)- Rapids on X
6,000 mm/min
(4 in/s)- Rapids on Z
6,000 mm/min
(4 in/s)- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Coolant capacity
180 l
(48 gal)- Overall lenght
4,250 mm, 5,250 mm
(167 in, 207 in)- Overall width
2,147 mm
(85 in)- Overall height
1,920 mm
(76 in)- Weight
4,810 kg, 5,500 kg
(10,604 lb, 12,125 lb)
Description
MEGA-72 is a flatbed horizontal CNC lathe optimized for machining precision parts of shaft shape such as main shafts and large pipes in the fields of shipbuilding, wind power, aerospace and defense industries.
MEGA-72 ensures stable and powerful machining based on a high rigidity box way type feed system and an integrated bed structure, and maintains high precision even during long-term machining by minimizing thermal displacement.
