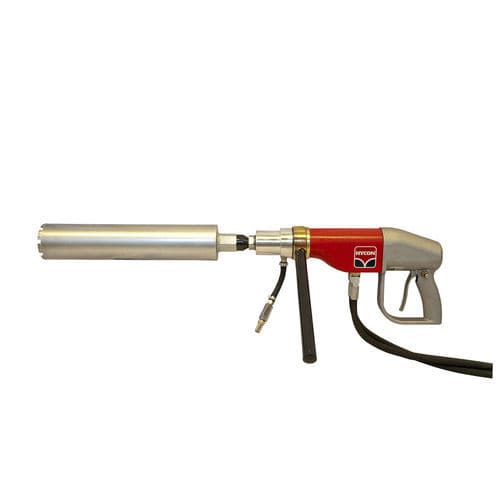

Concrete core drill HCD25-100

Description
The HCD25-100 is a compact handheld hydraulic core drill designed for coring in confined or hard-to-reach locations where drill rigs or electric units cannot be used. It provides high torque in a lightweight, single-operator package and can be mounted to a standard drill rig with a 60 mm flange for heavier tasks.

Applications

• Handheld coring in concrete structures, pipes and ventilation ducts
• On-site repairs, retrofits and installations in confined spaces
• Fast, portable coring where a rig is impractical

Safety and operation
The HCD25-100 features a built-in hydraulic torque limiter that ensures maximum torque while preventing kickback if the core bit jams. An automatic safety stop engages on seizure; release the core from the material before restarting. Safety settings are factory-configured and should not be altered.

Technical data
Item no.: 3030150
Weight [kg]: 7.6
Corebit diameter Ø [mm]: 25-100
Max rotation speed [RPM]: 1500
Oil flow [LPM]: 20
Working pressure [bar]: 100
Max pressure [bar]: 172
Sound power level LWa [dB]: 84
Vibration level, 3 axis [m/s2]: < 2.5

Specifications

• Item no.: 3030150
• Weight: 7.6 kg
• Corebit diameter: 25-100 mm
• Max rotation speed: 1500 RPM
• Oil flow: 20 LPM
• Working pressure: 100 bar
• Max pressure: 172 bar
• Sound power level LWa: 84 dB
• Vibration level, 3 axis: < 2.5 m/s2
• Drive adapter: ½" BSP socket with 1-1/4" UNC pin adapter included
