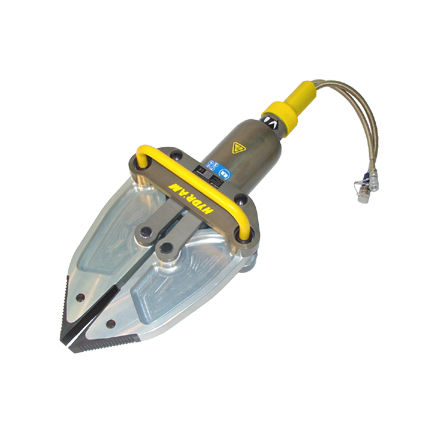

High strength hardened light alloy unit. Can be used in wet conditions.
Tool
comprises
1 Double action cylinder
1 Ergonomically shaped control handle with integrated safety device and piloting
1 Set of hoses 0.5m long, with automatically locking anti-pollution HP quick action couplers fitted with metal protection plugs
2 Forged high strength light alloy arms fitted with interchangeable serrated tips without tools. The tips are made from high strength, hardened and anti-corrosion treated steel
Pressure relief valve for hose on coupler end
Characteristics
Spreading force F : 92 kN
Maximum spreading force F3 : > 260 kN
Traction force F4/F5 : 114,4 / 62 kN
Maximum opening B : 565 mm
Maximum Pulling Stroke : 431 mm
Dimensions (mm) LxAxH : 911 x 370 x 244
Weight : 32,6 kg
Tool classification EN 13204 : CS 91-565/32,6
Operating pressure : 700 bar
