diesel engine hydraulic power unit / for mobile applications / portable
HT6D

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
diesel engine hydraulic power unit / for mobile applications / portable diesel engine hydraulic power unit / for mobile applications / portable - HT6D
{{requestButtons}}

Characteristics

  • Power source:

    diesel engine

  • Applications:

    for mobile applications

  • Other characteristics:

    portable

  • Nominal power:

    6 ch (6 hp)

  • Flow rate:

    Min.: 0 us gal/min (0 l/min)

    Max.: 5 us gal/min (18.93 l/min)

  • Tank capacity:

    15 l (4 gal)

Description

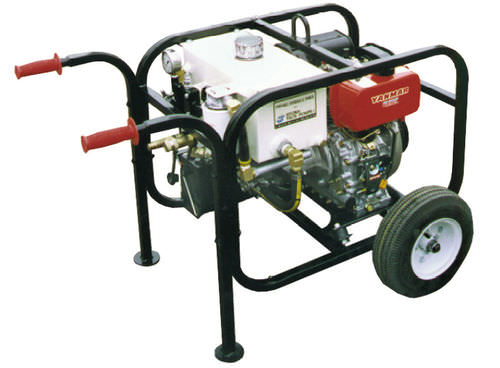

The HT6D is a portable unit which is capable of supplying hydraulic power to control various tools. Through an integration with a Yanmar air-cooled diesel engine and a gear-type hydraulic pump, the unit is made fitted for driving slim-line borehole pump. A system relief and pressure control valve are provided along with a liquid loaded pressure gauge. It is built with a spin-on return filter integrated with an indicator and an automatic engine safety shutdown features. It offers different selection including several hydraulic circuit and others.
