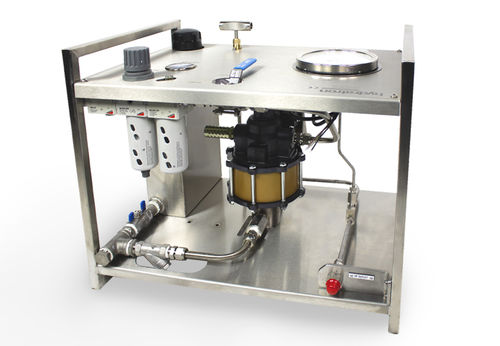

Electrically-powered hydraulic power unit AZ-1 seriestankpumpconstruction
Add to favorites
Compare this product
Characteristics
- Power source
- electrically-powered
- Applications
- construction, oil, pump, tank
- Operating pressure
Min.: 32 bar
(464 psi)Max.: 2,931 bar
(42,511 psi)- Flow rate
Min.: 0.43 l/min
(0.11 us gal/min)Max.: 30 l/min
(7.93 us gal/min)
Description
The Hydratron range of Standard Hydraulic Power Units (HPUs) provide a solution for customers looking for pre-engineered and user-friendly Liquid Pump systems.
Key Features
Ability to stall at a predetermined pressure and hold this fixed pressure without consuming power or generating heatNo risk of flame or sparkInfinitely variable speed/output flowrate controlInfinitely variable output pressure controlStandard models are suitable for oil or water applicationsIsolation chamber for Chemical applicationsNo limit or adverse effects in continuous stop/start applicationsProven reliability, easy to maintain and robust
Specifications
Air filter, lubricator, pressure regulator, pressure gauge & speed control valve6” (150mm) diameter panel mounted outlet pressure gaugePressure release valve with return back to tankInlet fluid strainerAll interconnecting pipework & fittingsRobust Stainless Steel Frame as standardFluid reservoir:Stainless Steel construction as standardPlastic tank on Lightweight option
Catalogs
AZ-1-5
3 Pages
