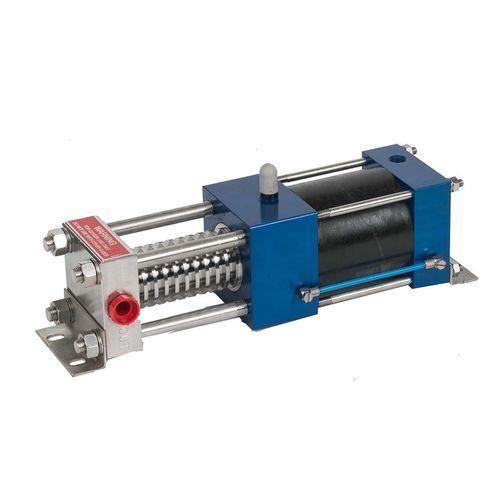

Gas pressure booster 3G-SS-20
nitrogencompressed airlubricated

gas pressure booster
gas pressure booster
Add to favorites
Compare this product


Characteristics

Media
gas, nitrogen, compressed air
Lubrication
lubricated
Cooling system
cooled
Pressure

Min.: 1 bar
(14.5 psi)

Max.: 10 bar
(145 psi)

238 bar
(3,451.9 psi)

Description

Hydraulics International, Inc. (HII) gas booster is designed to boost gas directly from a cascade system, a gas generation system. The unit ensures full fills even if the supply storage pressure drops as low as The unit may be Driven manually, by means of its integral hand pump assembly (optional); a low pressure conventional air compressor; or Regulated high-Pressure air storage supply (SCUBA, SCBA or NITROGEN bottles). The high-pressure sections of the booster are cooled by the drive exhaust air and operate dry, non-lubricated. In the shop air drive mode, non-contaminated outlet gas is assured because of complete dual vented separation from the drive section. KEY FEATURES: -Hold Pressure. Can be controlled to stop at any predetermined pressure and hold that pressure indefinitely without consuming power, and restart under full load - Intrinsically Safe. Compressed air reduces risk of heat, flame, spark, or electrical shock - Contamination FREE. Separation between drive and gas section uses three static seals with dual vents
