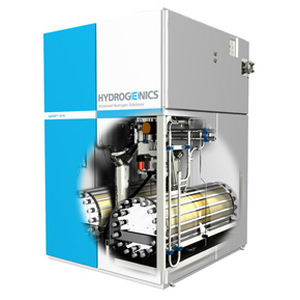

A HySTAT™30 unit consists of a hydrogen generating unit with our proprietary IMET® cell stack, a control panel with HMI and a power rack with controlled AC/DC conversion to produce hydrogen in a safe and reliable way. The maximum working pressure can be selected to be 10 barg and the gas purity can be up to 99.999%.
With safety and reliability as key priority, every HySTAT™ features:
-PROFIsafe protocol ensuring a safe shut down in case of control failure (PLC)
-Fail safe logic for all parameters and inherent safe design (passive safety)
-Uninterruptible Power Supply (UPS) ensuring a safe shutdown in case of power failure
-Constant monitoring of gas purity (HTO)
-Minimal gas presence in the system (only few Nm3 at full production)
-Multiple redundancy on critical safety parameters.
The HySTAT™ H2 production is continuously monitored and rapidly adjusted to meet any actual user requirements. Every system is offered together with startup and commissioning at your site and with a training to provide your operator with the required knowledge to run the system. The HySTAT™ can be equipped with a variety of options.
