4-axis CNC machining center ICON 6-150

verticalfor steelfor stainless steel

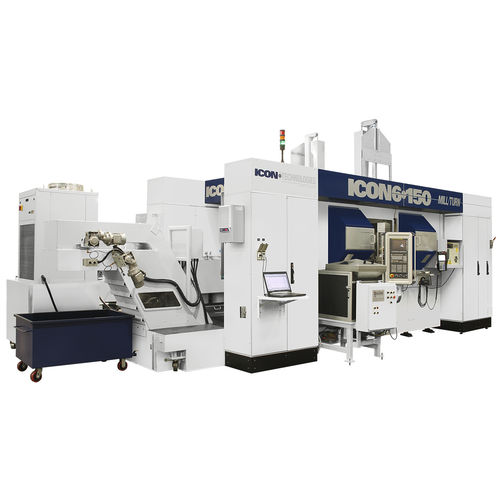

The ICON 6-150 designed with four machining stations and two dedicated loading/unloading stations, the ICON was developed around flexible machining principles. Equipped with a six position table, it shuttles pallets to four machining modules for fast, ultra-precision cutting. These four cutting stations produce 5-sided machining with 4-axis interpolation; 6 sides if the idle station is used for work piece inversion. These benefits coupled with the ICON’s flexibility creates a highly innovative solution to produce parts complete, with fast cycle times and a superior surface finish. The unique design of the ICON 6-150 combines flexible machining center principles with Hydromat's rotary transfer production philosophy. The results are a robust machining center with extreme versatility. INDEX DRIVES - Amount of Index drives: 4 positions Index speed: 0.9 seconds for 180° Rotation: 360.000x0.001° Maximum Turning Speed: 5,000rpm PALLET CHANGER - Direct Drive via Fanuc Torque Motor Amount of Pallets: 6 Single Index (6 x 60°) Double Index (3 x 120°) Table Index Time: 3.5 seconds TOOL CHANGER Maximum tool length: 140 mm (5.5 in) Maximum diameter: 45 mm (1.8 in) COOLANT SYSTEM - 30μm high pressure Up to 80bar through spindle Self cleaning permanent media 75μm low pressure Paper or cartridge filter media CONTROLS / VOLTAGES - Control: Fanuc 30i Drives: Fanuc 30i Main Voltage: 480V @ 60 Hz
