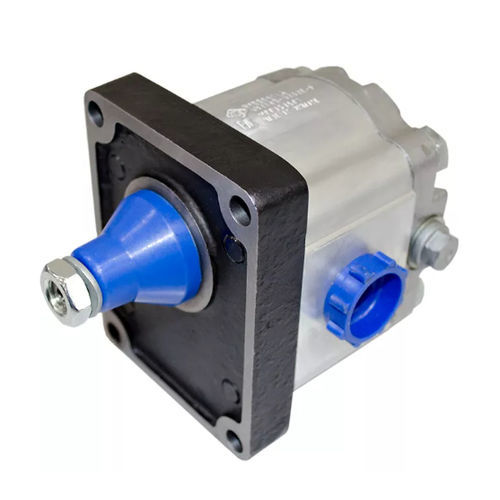

External-gear hydraulic motor GM2K series
aluminumvariable-displacementflange-mount

external-gear hydraulic motor
external-gear hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
external-gear
Other characteristics
variable-displacement, aluminum, flange-mount
Pressure

170 bar, 190 bar, 210 bar, 220 bar, 250 bar (2,466 psi)

Min.: 0 bar (0 psi)

Max.: 280 bar (4,061 psi)

Rotational speed

Min.: 2,800 rpm (17,592.92 rad.min-1)

Max.: 4,000 rpm (25,132.74 rad.min-1)

Torque

Min.: 20.8 Nm (15.34 ft.lb)

Max.: 57.7 Nm (42.56 ft.lb)

Displacement

Min.: 6 cm³ (0 US fl oz)

Max.: 25 cm³ (1 US fl oz)

Description

Gear motors GM2K group 2 have a wide range of shafts, flanges and ports according to international standards. Modern technologies and many years of experience of the HYDROSILA company allow us to create pumps with high reliability and durability. High efficiency, low noise level, a wide range of options make these motors an excellent solution for hydraulic systems of agricultural and construction machinery, forestry equipment and utility vehicles. ● Displacement 6...25 cmᶟ ● Max. continuous pressure up to 250 bar ● Starting pressure up to 280 bar ● Maximum speed up to 4000 min⁻¹ ● Low noise level ● Long service life ● Assembling dimensions according to SAE, DIN, EUROPEAN, GERMAN ● Reversible direction of the drive shaft is avaible ● Built-in valves are avaible ● Version with drive shaft is avaible ● Mounting flange with bearing support is avaible.
